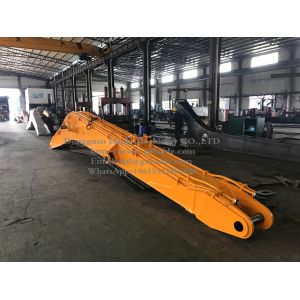

    Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D

    Ask Lasest Price
    Brand Name : Pile driving machine
    Model Number : SY235/SY265/SY335/SY485
    Certification : ISO9001:2008 and CE
    • Product Details
    • Company Profile

    Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D

    Product Description

    SANY excavator pile driving boom and arm


    Excavator long reach boom and arm


    1.Applicable for all the make and model of excavator.


    2.Standard supply include:bucket,linkage,bucket cylinder, 4oil pipe/hose,6pins,lubricating system


    3.Many different material such as Q345B,Q690D,Weldox are optional to suit to your application.


    4.Big boom can be two jointed pcs to make it fittable into container to save shipping cost.


    5.All the seam are 45 degree tapered before welding.


    6.Six month warranty


    7.Some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty application.


    8.Boom cylinder and arm cylinder can also be supplied if customer want.


    9.Extra pipeline can be added to suit to some extra application.


    10.Biggest long boom we have done is 32m long boom for Hitachi EX3500.



    Model

    LDB120

    LDB200

    LDB220

    LDB300

    LDB350

    LDB400

    LDB450

    Total length

    (mm)

    13000

    15380

    15380

    18000

    20000

    22000

    24000

    Weight

    (kg)

    3000

    4000

    4200

    5200

    6000

    6500

    7000

    Max dig depth

    (mm)

    9000

    11340

    11370

    13000

    15000

    16500

    18000

    Max extensive

    Scope (mm)

    12500

    15100

    15100

    17600

    19600

    21600

    23600

    Max dig height

    (mm)

    11300

    12510

    12610

    13720

    14920

    16100

    17300

    Folding height

    (mm)

    2900

    2980

    3040

    3210

    3210

    3400

    3400

    Bucket volume

    (m3)

    0.3

    0.4

    0.4

    0.4

    0.5

    0.6

    0.6

    Excavator

    Tonnage(ton)

    12

    20

    22

    30

    35

    40

    45


    production processes

    1.material :Q345B and Q690D:

    The top and bottom use Q690D steel,Other use Q340B steel.


    2.wilding : Welded with mixed gas between argon and carbon dioxide. Argon content:80%.

    Carbon dioxide content:20%


    3.bushing: we use copper bushing with graphite.

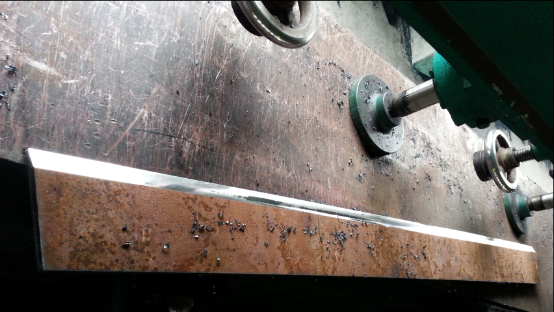

    4.To adopt milling machines to prepare strip edges and groove to give good

    condition for forming and welding.
