Bitvisus 4K60 Decoding and Splicing Processorl 1080P or 1200P
Outputs 1-channel Loop-Through Output Splicing Screen Converter

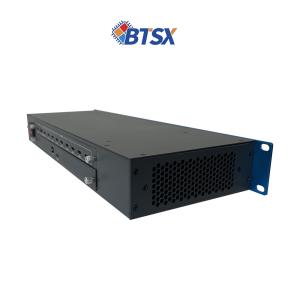

BIT-Dec64-09 is a IPC decoding and splicing device independently developed by BTSX. It can open windows to display the video of 64-channel
IPC. It offers 9-channel 1080P or 1200P HDMI outputs and supports
various screen splicing modes with arbitrary combinations. The
device can be controlled via a web page. You can perform operations
such as IPC video roaming, window splitting and merging on single -
screen and multi - screen setups through the web page.These
operations are convenient and easy to control. In addition, the
product also supports functions such as IPC search, batch IPC
import, IPC video web page echo. The BIT-Dec64-09 meets the
monitoring needs in different scenarios and is widely used in
security monitoring applications.
Bitvisus 4K60 Decoding and Splicing Processorl 1080P or 1200P
Outputs 1-channel Loop-Through Output Splicing Screen Converter
✅ 9 HDMI Outputs + 1 HDMI Loop-Out
✅ Supports up to 64x D1@30fps or 16x 1080p@30fps H.265/H.264
decoding
✅ Flexible video wall layouts: horizontal, vertical, grid, and
custom combinations
✅ Full hardware FPGA architecture, 28nm process — fast processing,
zero latency
✅ Low power consumption, fanless design, stable and reliable
✅ Web-based control — no software installation required, easy to
operate
✅ Supports camera batch import/export, scene tour, electronic map,
subtitle display, and more
Bitvisus 4K60 Decoding and Splicing Processorl 1080P or 1200P
Outputs 1-channel Loop-Through Output Splicing Screen Converter
Technical Specifications
| Parameter | Description |
|---|
| Model | BIT-Dec64-09 |
| Decoding Capacity | 64x D1@30fps or 16x 1080p@30fps (H.265/H.264) |
| Output Interfaces | 9x HDMI 1.4, 1x HDMI Loop-Out |
| Output Resolution | 1920×1080p60, 1920×1200p60 |
| Network Interface | Gigabit Ethernet |
| Control Method | Web browser |
| Power Supply | 12V/5A |
| Power Consumption | 26W |
| Dimensions | 483mm × 162mm × 60mm |
| Operating Temperature | 0°C to 70°C |
Bitvisus 4K60 Decoding and Splicing Processorl 1080P or 1200P
Outputs 1-channel Loop-Through Output Splicing Screen Converter
Core Functions
