| Brand Name : | Sussman |
| Model Number : | RF-ST |
| Certification : | CE, SGS, ISO |
| Price : | negotiable |
| Supply Ability : | 10 sets/month |
| Delivery Time : | 45 days after deposit |
0.8mm Aluminum Galvalume Steel Portable Hydraulic Type Lamina Kr18 Roof Roll Forming Machine
The KR18 is a very popular and versatile profiled metal roofing sheet, commonly used in industrial, commercial, and agricultural buildings across the globe
1. Technical Parameter
Number | Items | UnitType | RF-ST |
1 | Steel Thickness | mm | 0.3-0.8mm for Color coated steel, aluminum sheet |
2 | Forming Speed | m/min | 8-12 |
3 | Roller stands | stations | 8 stations |
4 | Roller Material | mm | 45# steel, coated with chrome |
5 | Shaft material and diameter | mm | Ф70mm, 45# steel, fire treated |
6 | Power | HP | 22 |
7 | Power Supply | 220V, 60HZ,3 phase | |
8 | Tolerance | mm | 1.5 |
9 | Material of cutting | Cr12Mov HRC60-62 | |
| 10 | Machine weight | T | about 2.5 tons |
2. Machine List
5 tons manual de-coiler | 1 set |
Hydraulic cutting | 1 set |
Main roll forming machine | 1 set |
PLC Control box | 1 unit |
Gasoline | 1 unit |
Passive Out table | 2 units |
Safety cover | 1 unit |
3. Key Features and Specifications
| Feature | Specification / Description |
|---|---|
| Profile | Trapezoidal, 5-rib |
| Effective Cover Width | 457 mm (This is the most critical dimension for planning) |
| Overall Width | ~ 463 mm (The total width of the sheet before lapping) |
| Panel Height (Depth) | ~ 18 mm |
| Standard Lengths | Custom-cut to order, typically up to 12 meters or more. |
| Material | Usually made from steel coil, coated for corrosion resistance. |

4.Advantages of KR18 Roof Sheets
Strength & Rigidity: The trapezoidal profile provides high structural strength and load-bearing capacity, resisting wind uplift and supporting walking loads during installation (when correctly installed on purlins).
Wide Spans: It can span relatively long distances between supporting roof purlins, reducing the need for excessive supporting framework.
Efficient Water Drainage: The pronounced ribs effectively channel water off the roof quickly, minimizing the risk of leaks.
Easy and Fast Installation: The sheets are large, lightweight, and designed for quick installation, reducing labor costs.
Cost-Effective: It is an economical cladding solution for large areas.
Availability: Very widely available from numerous suppliers.

The KR18 profile is incredibly versatile and used for:
Industrial Buildings: Factories, warehouses, workshops.
Commercial Buildings: Shopping centers, supermarkets, showrooms.
Agricultural Buildings: Barns, stables, storage sheds, poultry houses.
Ancillary Structures: Carports, shade ports, boundary walls, and fencing.

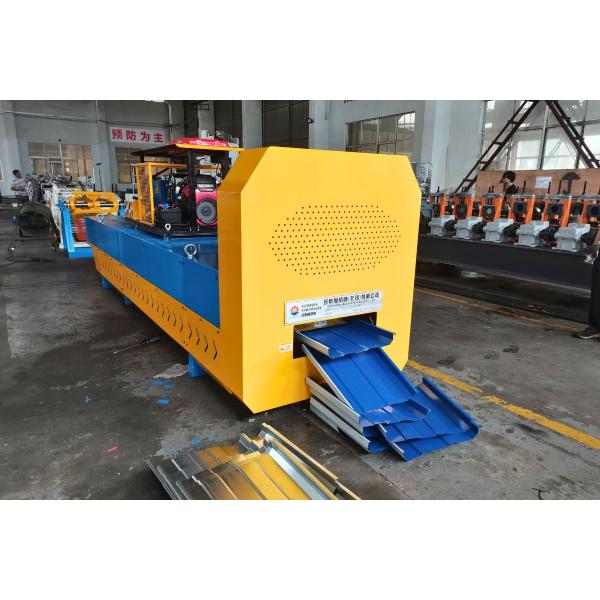

6. Machine photo

|
