    KSCY-400/14.5K 400cfm Diesel Portable Screw Air Compressor With Cummins Engine

    Ask Lasest Price
    Brand Name : RanCheng
    Model Number : KSCY-400/14.5K
    Certification : CE, ISO 9001:2000
    Price : $ 10000-12000
    Payment Terms : T/T, Western Union
    Supply Ability : 100sets per Month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    KSCY-400/14.5K 400cfm Diesel Portable Screw Air Compressor With Cummins Engine

    KSCY-400/14.5K 400cfm Diesel Portable Screw Air Compressor With Cummins Engine


    Product Description

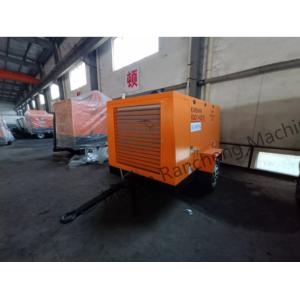

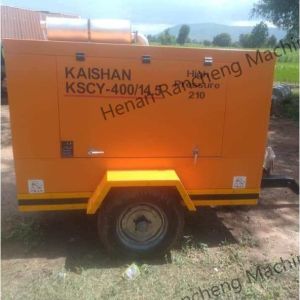

    The KSCY-400/14.5K is a trailer-mounted diesel-driven screw air compressor engineered for heavy-duty industrial, construction, and mining applications. With a 400 CFM displacement and a working pressure of 14.5 bar (210 psi), it delivers a relentless high-flow air supply, supported by a 150-horsepower Cummins engine for good reliability in extreme conditions.


    Specification


    ModelKSCY-360/13KSCY-400/14.5KKSCY-550/13KSCY-580/17KSCY-680/14.5
    Air Compressor
    Capacity

    m3/min

    (cfm)

    10(360)11(400)15(550)17(580)19(680)
    Discharge PressureBar(Psi)13(190)14.5(210)13(190)17(250)14.5(210)
    Capacity oil systemL3040
    Compression Stages1
    Diesel Engine
    ManuafacturerYuchaiCumminsCumminsCumminsCummins
    ModelYC6B150Z-K20150HP6BTA5.9-C1806CTA8.3-C2606CTA8.3-C260
    Rotating Speed Full loadr/min21002100250022002200
    Rotating Speed No loadr/min14001400140015001500
    Rated PowerHP(KW)110(150)110(150)180(132)260(194)260(194)
    CapactiyL6.8716.8715.98.38.3
    Capacity fuel tankL130130195300300
    Electric System VoltageV2424242424
    The Whole Air Compressor
    Sound level±3dB(A)8082
    Weightkg2200240032003200
    Lengthmm3650300036003600
    Widthmm1880152018001800
    Heightmm2060220024502450
    Outlet ValveG11/2 ×1,G3/4 ×1G2×1,G3/4×1

    Key features


    Power & Performance


    400 CFM Airflow: Run multiple high-demand tools continuously (rock drills, industrial sandblasters).
    14.5 Bar Pressure: Optimized for heavy tasks: laser-cutting thick metals, pipeline cleaning, large-scale painting.
    Cummins Engine: Fuel-efficient, high-altitude capable, built for rugged terrain durability.


    Efficiency & Reliability


    30-Year Lifespan: Precision screw element minimizes wear, cuts downtime.
    Smart Flow Control: Slide valve tech reduces energy use by 35% vs. traditional compressors.
    Multi-Phase Tolerance: Handles dusty/humid/liquid-laden air (ideal for mining, wastewater, chemical sectors).


    Mobility & Operation


    Trailer-Mounted: Heavy-duty wheels + tow hitch for off-road site access.
    Automated Controls: Intuitive panel enables 24/7 operation without specialists.
    Low Noise: <85 dB(A) enclosure for noise-sensitive zones.


    Rugged Design


    Weatherproof Housing: Withstands corrosion, extreme temps, dust.
    Foundation-Free: Dynamic balance operates on uneven ground.


    Application


    • Mining & Quarrying: Powering jackhammers, rock drills, and ventilation systems in tunnels.

    • Construction: Simultaneous operation of concrete breakers, pneumatic cranes, and large-scale spray painting.

    • Industrial Maintenance: Cleaning heavy machinery, pipeline commissioning, and supporting automated assembly lines.

    • Emergency Services: Backup air supply for firefighting, disaster relief, and remote infrastructure repairs.
