CNLINKO M24 Plastic IP68 Waterproof LC Male Female Connector Circular Fiber Optic Connector

    Buy cheap CNLINKO M24 Plastic IP68 Waterproof LC Male Female Connector Circular Fiber Optic Connector from wholesalers

    Buy cheap CNLINKO M24 Plastic IP68 Waterproof LC Male Female Connector Circular Fiber Optic Connector from wholesalers
    • Buy cheap CNLINKO M24 Plastic IP68 Waterproof LC Male Female Connector Circular Fiber Optic Connector from wholesalers
    • Buy cheap CNLINKO M24 Plastic IP68 Waterproof LC Male Female Connector Circular Fiber Optic Connector from wholesalers
    • Buy cheap CNLINKO M24 Plastic IP68 Waterproof LC Male Female Connector Circular Fiber Optic Connector from wholesalers
    • Buy cheap CNLINKO M24 Plastic IP68 Waterproof LC Male Female Connector Circular Fiber Optic Connector from wholesalers
    • Buy cheap CNLINKO M24 Plastic IP68 Waterproof LC Male Female Connector Circular Fiber Optic Connector from wholesalers
    • Buy cheap CNLINKO M24 Plastic IP68 Waterproof LC Male Female Connector Circular Fiber Optic Connector from wholesalers

    CNLINKO M24 Plastic IP68 Waterproof LC Male Female Connector Circular Fiber Optic Connector

    Ask Lasest Price
    Brand Name : CNLINKO
    Model Number : BD-24-C/LC/016/PE-02-001
    Certification : CUL,UL,CE,ROHS,CCC,ISO9001
    Price : $6-7
    • Product Details
    • Company Profile

    CNLINKO M24 Plastic IP68 Waterproof LC Male Female Connector Circular Fiber Optic Connector

    CNLINKO M24 Plastic IP67 waterproof LC male female connector Circular Fiber Optic connector


    Features:

    Multi-purpose design (3-core, RJ45 signal) for a wide range of application needs;
    Fully plastic and all-metal two-component design, with strong applicability and complete electromagnetic and radio frequency interference protection;

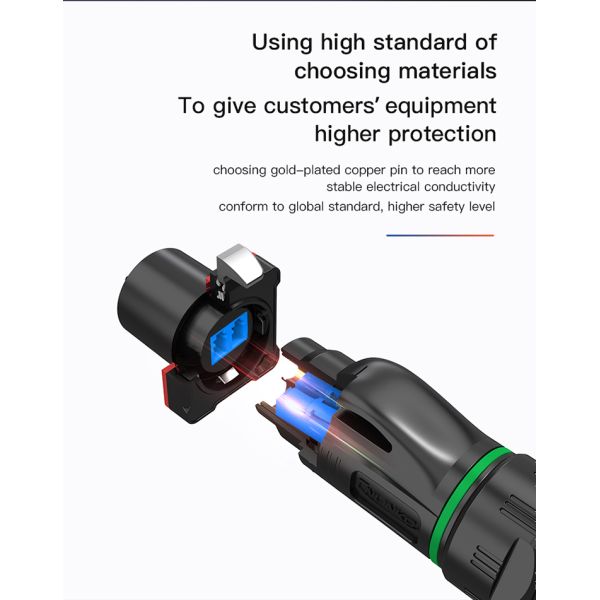

    Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, temperature changes that can be effectively generated by current;
    PBT material shell, stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;
    IP67 protection level in connection state;
    Rated current 25A;
    One-piece streamlined design.

    Product Description


    Specifications
    Specifications
    Connecting modeLatching Lock connect
    Protection levelIP65/IP67
    Cable specification0.15mm2 ~ 0.2mm2 /26~24AWG

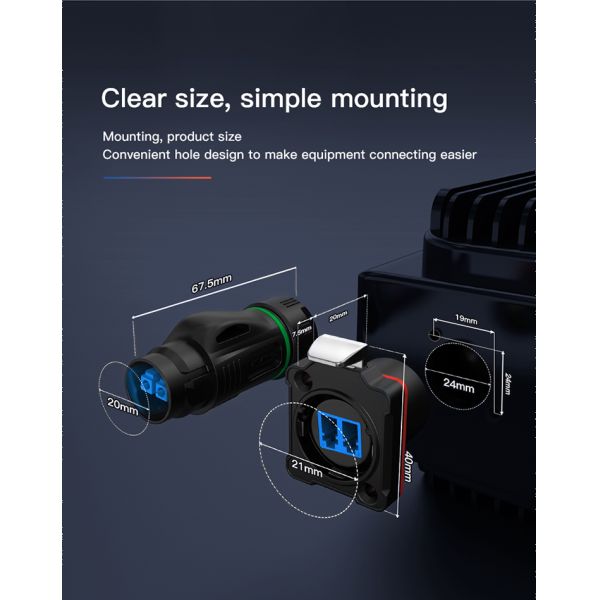

    Diameter rangeΦ5.5mm ~Φ7mm
    Contact diameter×Qty2
    Current rating(A)/
    Temperature rise/
    Operating voltage(AC.V.rms)/
    Withstanding voltage(AC.V)1min/
    Contact resistance/
    Insulation resistance>500MΩ
    Durability≥500 mating&unmating cycles
    Temperature rating-40°C~80°C
    Method of connecting cableSoldering
    Prevent the combustion levelUL94-V0
    Material
    Insulated partsHigh performance engineering plastics
    Hardware metalZinc alloy(pearl hard chromium)
    Contact pinCopper alloy(gold-plated 4U)
    SpringStainless steel
    SealingSilica gel
    Main characteristics
    Sealed against dust and fluid (IP65/IP67)
    Vibration resistance,impact resistance,stretching resistance
    socket with cover
    Application industries
    Stage equipment - The smart grid
    Medical equipment - Server
    Solar energy equipment - Ship equipment
    Electric power equipment - Vehicle equipment
    Communications equipment - Heavy machinery
    Certifications
