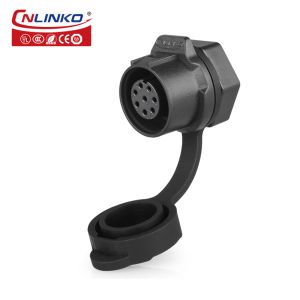

    IP68 Panel Mount Quick Lock Type 8 Pin Waterproof Power Cable Connector M12 With Wire Connector

    Ask Lasest Price
    Brand Name : CNLINKO
    Model Number : LP-12-C08PE-02-001&LP-12-J08SX-02-101
    Price : US$4.66-5.44
    • Product Details
    • Company Profile

    IP68 Panel Mount Quick Lock Type 8 Pin Waterproof Power Cable Connector M12 With Wire Connector

    IP68 Panel Mount Quick Lock Type 8 Pin Waterproof Power Cable Connector M12 With Wire Connector

    Product Description

    - Multi-style inner core design (2-8 cores), in line with various industrial requirements, the signal and power supply are compatible at the same time.
    - Spring-pressed design, tightly docked, safe and secure.
    - The orientation is strong, and blind insertion can be realized, and the humanized design in the true sense.
    -3 core lock screws and solderable optional connection, fully compatible with outdoor installation work.
    - Gold-plated contacts, high corrosion resistance and electrical conductivity, effectively coping with changes in temperature rise caused by current.
    - Thermoplastic high temperature resistant plastic case, stable electrical performance, high strength, high temperature resistance and corrosion resistance.
    - Unique docking design, solid extension of infinite line length.
    -Flange 4 hole mounting, stable and impeccable, threaded single hole housing installation, suitable for circular opening industrial installation.
    - The product complies with IP67 protection in the assembled state.



    Specifications
    Specifications
    Connecting modeLatching Lock connect
    Protection levelIP65/IP67
    Cable specification0.2~0.3mm²/24~22AWG
    Diameter rangeΦ3mm ~Φ6mm
    Contact diameter×QtyΦ0.8x8
    Current rating(A)3A
    Temperature rise/
    Withstanding voltage(AC.V)1min1500V
    Contact resistance<5mΩ
    Insulation resistance>500MΩ
    Durability≥500 mating&unmating cycles
    Temperature rating-40°C~80°C
    Method of connecting cableSoldering
    Prevent the combustion levelUL94-V0
    Material
    Insulated partsHigh performance engineering plastics
    Hardware metalZinc alloy(pearl hard chromium)
    Contact pinCopper alloy(gold-plated 4U)
    SpringStainless steel
    SealingSilica gel
    Main characteristics
    Sealed against dust and fluid (IP65/IP67)
    Vibration resistance,impact resistance,stretching resistance
    socket with cover
    Application industries
    Stage equipment - The smart grid
    Medical equipment - Server
    Solar energy equipment - Ship equipment
    Electric power equipment - Vehicle equipment
    Communications equipment - Heavy machinery
