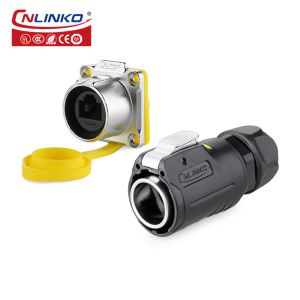

    Cnlinko M24 Signal Connector Panel Mount Waterproof IP68 Ethernet Pins Female Waterproof Rj45 Connector

    Ask Lasest Price
    Brand Name : CNLINKO
    Model Number : DH-24-RJ45-P01
    Certification : CUL,UL,CE,ROHS,CCC,ISO9001
    Price : $9.60-10.60
    • Product Details
    • Company Profile

    Cnlinko M24 Signal Connector Panel Mount Waterproof IP68 Ethernet Pins Female Waterproof Rj45 Connector

    Cnlinko M24 Signal Connector Panel Mount 8 pin Metal rj45 Coupler Waterproof IP67 RJ45 Ethernet Connector

    Features:


    1.Three positioning, with wave spring knob, and the outer ring card point locking snap engaged with the socket, easy to operate with uniform intensity engaging, and keeping the current and signal transmission more stable.
    2.With wave spring structure,keeping elastic wave spring stranded automatically while connection.
    3.With copper needle retainer, copper welding operations and install socket separated, making the products simple and convenient operated in harsh environments .
    4.With outer alloy ring, making the plug and socket more stable while closed , keeping the power supply or signal transmission more stable and comparable while connection.
    5.With tail jaws , to tighten and twisted the wire more effective, improving the waterproof rating ,tensile strength , and keeping the nuts anti-back effectively.
    6. Using waterproof clip coil designing, keeping the products have better waterproof rating while closed.
    7.Different core designing, the products can be widely used for signal, USB, fiber optic and power plug connection.
    8. Waterproof IP65/IP67 while connection.

    Product Description

    Specifications
    Specifications
    Connecting mode1/4 bayonet connecting type
    Protection levelIP67
    Cable specification26~24AWG
    Diameter rangeΦ5mm ~Φ6.5mm
    Contact diameter×Qty8PIN
    Current rating(A)1.5A
    Operating voltage(AC.V.rms)/
    Withstand voltage(AC.V)1min1000V
    Contact resistance<30mΩ
    Insulation resistance>500MΩ
    Durability≥500 mating&unmating cycles
    Temperature rating-40°C~80°C
    Method of connecting cableSolder
    Prevent the combustion levelUL94-V0
    Material
    ShellZinc Alloy
    Hardware metalZinc alloy(pearl hard chromium)
    Contact pinCopper alloy(gold-plated)
    SpringStainless steel
    SealingSilica gel
    Main characteristics
    Sealed against dust and fluid (IP65/IP67)
    Vibration resistance,impact resistance,stretching resistance
    1/4 bayonet connect; socket with cover
    Application industries
    Stage equipment - The smart grid
    Medical equipment - Server
    Solar energy equipment - Ship equipment
    Electric power equipment - Vehicle equipment
    Communications equipment - Heavy machinery
