    Cnlinko Ip67 Waterproof Usb 2.0 Connector Usb Female Usb2.0 Extension Cable Connector

    Ask Lasest Price
    Brand Name : Cnlinko
    Model Number : YU-USB2-JSX-01-001
    Certification : UL,CE,ROHS,CCC,ISO9001
    Price : $6.81-13.62
    • Product Details
    • Company Profile

    Cnlinko Ip67 Waterproof Usb 2.0 Connector Usb Female Usb2.0 Extension Cable Connector

    Cnlinko ip68 waterproof usb 2.0 connector usb female usb2.0 extension cable connector

    Features:


    With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.

    Widely used in: computers, digital cameras, scanner and other transmission equipment. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on.

    Product Description

    Specifications
    Specifications
    Connecting modeLatching Lock connect
    Protection levelIP65/IP67
    Cable specification0.15mm2 ~ 0.2mm2 /26~24AWG
    Diameter rangeΦ5.5mm ~Φmm
    Contact diameter×Qty4
    Current rating(A)1.5A
    Temperature rise/
    Withstanding voltage(AC.V)1min1000V
    Contact resistance<30mΩ
    Insulation resistance>500MΩ
    Durability≥500 mating&unmating cycles
    Temperature rating-40°C~80°C
    Method of connecting cableSoldering
    Prevent the combustion levelUL94-V0
    Material
    Insulated partsHigh performance engineering plastics
    Hardware metalZinc alloy(pearl hard chromium)
    Contact pinCopper alloy(gold-plated 4U)
    SpringStainless steel
    SealingSilica gel
    Main characteristics

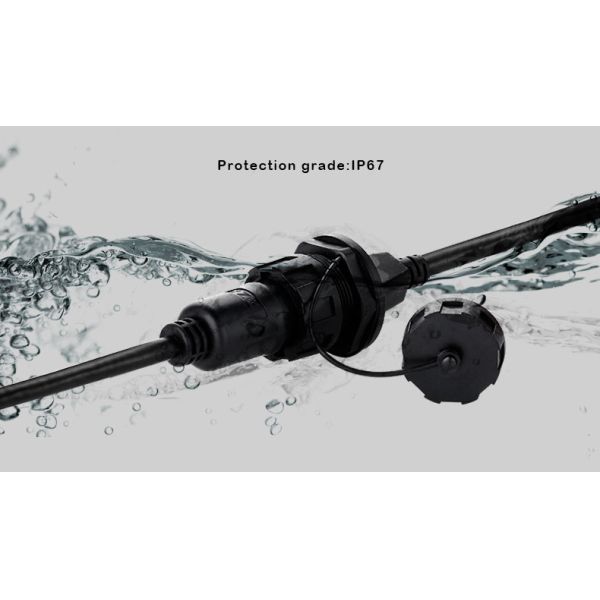

    Sealed against dust and fluid (IP65/IP67)
    Vibration resistance,impact resistance,stretching resistance
    socket with cover
    Application industries
    Stage equipment - The smart grid
    Medical equipment - Server
    Solar energy equipment - Ship equipment
    Electric power equipment - Vehicle equipment
    Communications equipment - Heavy machinery
