TRSL Series Hopper The Perfect Mud Cleaning System for Drilling
Fluid Mixing Solutions and More
Product description

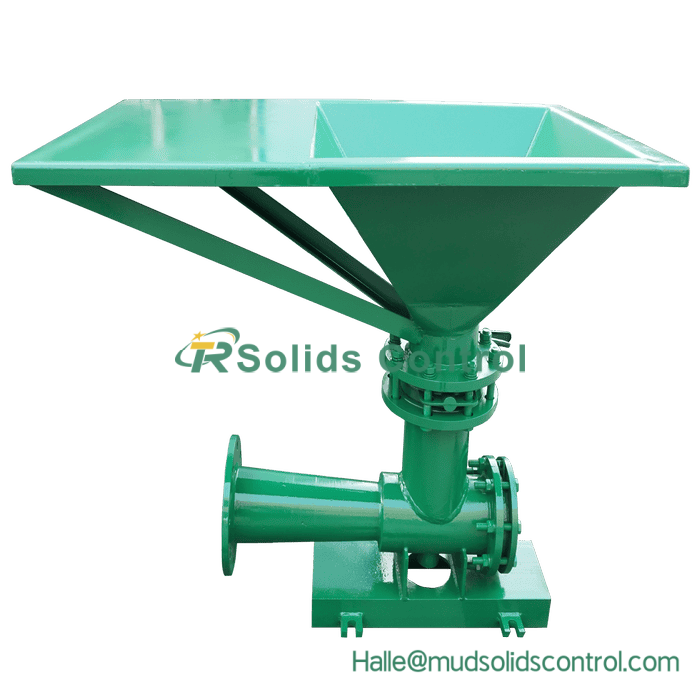

Hopper is a high-efficiency drilling fluid mixing equipment, which
adopts the principle of jet stirring to realize the rapid mixing,
shearing and homogenization of drilling fluid (mud) through
high-speed fluid shearing. This device is widely used in oil
drilling, horizontal directional drilling (HDD), coalbed methane
development and other fields, which can significantly improve the
efficiency of mud preparation and ensure the stable performance of
drilling fluid.
Advantage
✔ Fast mixing: high-speed jet shearing, the mixing efficiency is 3-5 times
higher than that of traditional mixing
✔ Uniform dispersion: Avoid agglomeration and precipitation, ensuring that additives
are fully dissolved
✔ Energy Saving and Efficient: Low energy consumption design, reducing power consumption
✔ Anti-clogging: No mechanical mixing parts, simple maintenance
Technical Specifications
Model | Work Press | Inlet Size | Hopper Diameter | Weight |
TRSL150-50 | 0.2~0.4mPa | DN150 | 750X750mm | 170kg |
TRSL150-40 | 0.2~0.4mPa | DN150 | 750X750mm | 170kg |
TRSL150-30 | 0.2~0.4mPa | DN150 | 600X600mm | 165kg |
TRSL100 | 0.2~0.4mPa | DN100 | 500X500mm | 140kg |
Applications
Oil/gas drilling: bentonite slurry, polymer slurry rapid formulation, oil-based mud
emulsion mixing
Horizontal directional drilling (HDD): In-line mixing of mud circulation systems
Environmental protection engineering: sludge conditioning, chemical mixing
Certifications
•API & ISO 9001 Certified – Ensures compliance with global industry standards.
•Explosion-Proof Standards – Safe operation in hazardous zones.
About TR Solids Control
TR SolidsControl is a leading manufacturer of drilling fluid
equipment, supplying reliable solutions to oil, gas, and trenchless
industries worldwide. With a strong focus on innovation and
quality, we ensure top-tier performance for all your drilling
needs.
