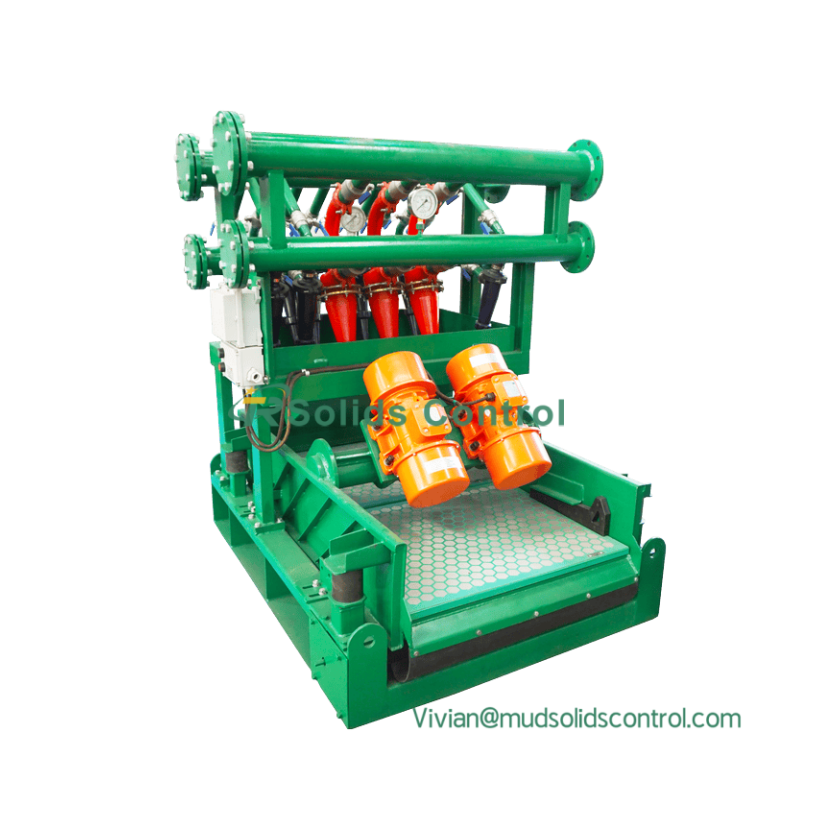

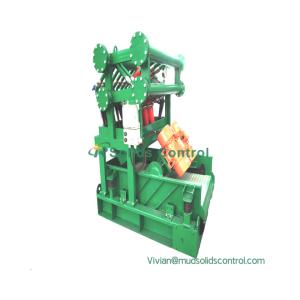

TRCN100-20N High-Capacity Drilling Mud Desilter – Precision Solids Control for Demanding Operations
Product Description
The TRCN100-20N High-Capacity Drilling Mud Desilter is an advanced
solids control unit engineered for tunneling, bored pile foundation
works, HDD (Horizontal Directional Drilling), and slurry recycling projects. With a large processing capacity of 300 m³/h and equipped with 20 × 4" (100 mm) hydrocyclones, it efficiently removes fine solids (15–44 μm) from drilling fluids, delivering cleaner and reusable slurry for
continuous operation.
Compact in structure yet powerful in performance, the TRCN100-20N
is built with robust materials, modular cyclone design, and
international-standard components. Certified to RoHS environmental
standards, it ensures cost efficiency, operational flexibility, and
sustainability across demanding construction and drilling
environments.
Features & Benefits
✔ Durable Cyclone Material – Choice of polyurethane or high-chromium iron for maximum wear
resistance and extended service life.
✔ Modular Cyclone Configuration – Clamp connection for easy installation, dismantling, and
replacement of hydrocyclones.
✔ Independent Flow Control – Ball valves at cyclone inlets/outlets allow selective operation of
cyclone units.
✔ Premium Vibration Motors – Equipped with Martin or OLI motors for strong, stable vibration
performance.
✔ Efficient Screening System – Integrated bottom shaker (TRZS703) with lifting device for precise
solids separation.
✔ Flexible Options – Configurable with cyclones for global compatibility; available with
or without bottom shaker.
Technical Specifications
Parameter | TRCN100-20N |
Capacity | 300 m³/h |
Hydrocyclones | 20 pcs |
Cyclone Diameter | 4" (100 mm) |
Working Pressure | 0.25–0.4 MPa |
Inlet Size | DN150 mm |
Outlet Size | DN200 mm |
Separation Point | 15–44 μm |
Bottom Shaker | TRZS703 |
Weight | 1950 kg |
Dimensions (mm) | 2770×1785×1810 |
Customizable | Yes |
Technical Advantages
✔ High-Capacity Processing – Handles up to 300 m³/h for continuous slurry treatment.
✔ Space-Saving Design – Compact footprint, ideal for restricted urban and underground job
sites.
✔ Easy Maintenance – Quick cyclone replacement reduces downtime.
✔ Reliable Performance – International motors and electrical components ensure stability.
✔ Eco-Friendly Operation – RoHS-certified, meeting strict environmental compliance
requirements.
Applications
✔ Tunneling & Micro-Tunneling
✔ Pipe-Jacking Projects
✔ Bored Pile & Piling Construction
✔ Diaphragm Wall Construction
✔ Horizontal Directional Drilling (HDD)
✔ Slurry Recycling Systems
Advantages & Services
✔ High Quality at Competitive Price – Robust construction with superior separation efficiency.
✔ Fast Global Delivery – Large inventory ensures timely shipment worldwide.
✔ Flexible Payment Options – Tailored to meet customer requirements.
✔ Comprehensive After-Sales Service – Global technical support and spare parts availability.
Why Construction Professionals Choose TRCN100-20N?
✔ Project Adaptability – Seamlessly transitions between HDD, TBM, piling, and tunneling
projects.
✔ Cost Efficiency – Recovers 90%+ reusable drilling fluids, cutting material and
disposal costs.
✔ Environmental Compliance – Meets international environmental and safety standards.
✔ Proven Reliability – Trusted by contractors worldwide for high-performance slurry
treatment.
About TR SolidsControl
TR SolidsControl is a professional manufacturer of drilling fluid
equipment, supplying advanced solids control solutions for oil and
gas, trenchless, and geothermal industries worldwide. Our
commitment to innovation and quality ensures high-performance
products and reliable service.
