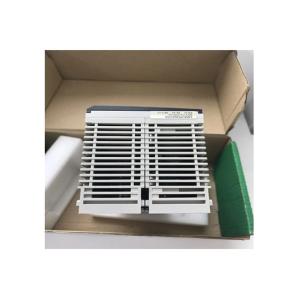

Schneider 140DSI35300 Switching quantity Supervised DC input 32

Name: Schneider 140DSI35300 Switching quantity Supervised DC input 32
Brand: Schneider
Price: 1 USD

Add to Cart

Schneider 140DSI35300 Switching quantity Supervised DC input 32 points 24 VDC 4 sets of isolation wire break detect

Main
range of product	Modicon Quantum automation platform
product or component type	Low voltage dc discrete input modules
discrete input number	32

Complementary
group of channels	4
logic input	Positive (sink)
discrete input voltage	24 V DC
input voltage limits	20...30 V
voltage state 1 guaranteed	>= 11 V DC
voltage state 0 guaranteed	<= 5 V DC
current state 1 guaranteed	>= 2.5 mA
current state 0 guaranteed	<= 1.2 mA
addressing requirement	4 input words
absolute maximum input	45 V during 10 ms decaying pulse
response time	2.2 ms from state 0 to state 1 3.3 ms from state 1 to state 0
isolation between group and bus	1780 Vrms for 1 minute
isolation between group	500 Vrms for 1 minute
checks	Broken wire detection
local signalling	1 LED (green)bus communication is present (Active): 1 LED (red)external fault detected (F): 32 LEDs (green)input status:
marking	CE
bus current requirement	250 mA
module format	Standard
net weight	0.3 kg

Environment
standards	CSA C22.2 No 142 UL 508
product certifications	FM Class 1 Division 2 C-Tick ABS
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…2000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
