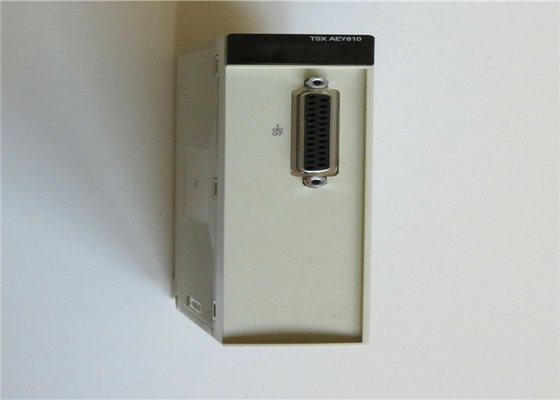

Schneider Electric TSXAEY810 Isolated analog input module 8 I multirange

Name: Schneider Electric TSXAEY810 Isolated analog input module 8 I multirange
Brand: Schneider
Price: 1 USD

Add to Cart

Main
range of product	Modicon Premium Automation platform
product or component type	Analog input module
input level	Low level
analogue input number	8
analogue input type	Current 0...20 mA Current 4...20 mA Voltage +/- 10 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V
analog/digital conversion	16 bits

Complementary
nominal read cycle time	29.7 ms
fast read cycle time	3.3 ms + 3.3 ms x number of channels used
measurement error	0.12 % of full scale 0...20 mA 0...60 °C 0.12 % of full scale 4...20 mA 0...60 °C 0.13 % of full scale 0...5 V 25 °C 0.13 % of full scale 1...5 V 25 °C 0.142 % of full scale 0...20 mA 25 °C 0.142 % of full scale 4...20 mA 25 °C 0.191 % of full scale 0...5 V 0...60 °C 0.191 % of full scale 1...5 V 0...60 °C 0.244 % of full scale +/- 10 V 25 °C 0.244 % of full scale 0...10 V 25 °C 0.305 % of full scale +/- 10 V 0...60 °C 0.305 % of full scale 0...10 V 0...60 °C
isolation between channels and bus	1000 Vrms
isolation between channels and ground	1000 Vrms
isolation between channels	+/- 200 V
common mode between channels	+/- 200
input overvoltage protection	-15…15 V at state 0 250 Ohm -30…30 V at state 1 250 Ohm
electrical connection	1 connector SUB-D 25
overcurrent	-30…30 mA at state 1 250 kOhm
marking	CE
current consumption	475 mA at 5 V DC
module format	Standard
net weight	0.33 kg

Environment
standards	IEC 1131
product certifications	ABS RINA LR BV DNV GL RMRS
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-25…70 °C
relative humidity	10…95 % without condensation for operation 5…95 % without condensation for storage
operating altitude	0...2000 m
protective treatment	TC
IP degree of protection	IP20
pollution degree	2

Contractual warranty
Warranty	18 months
