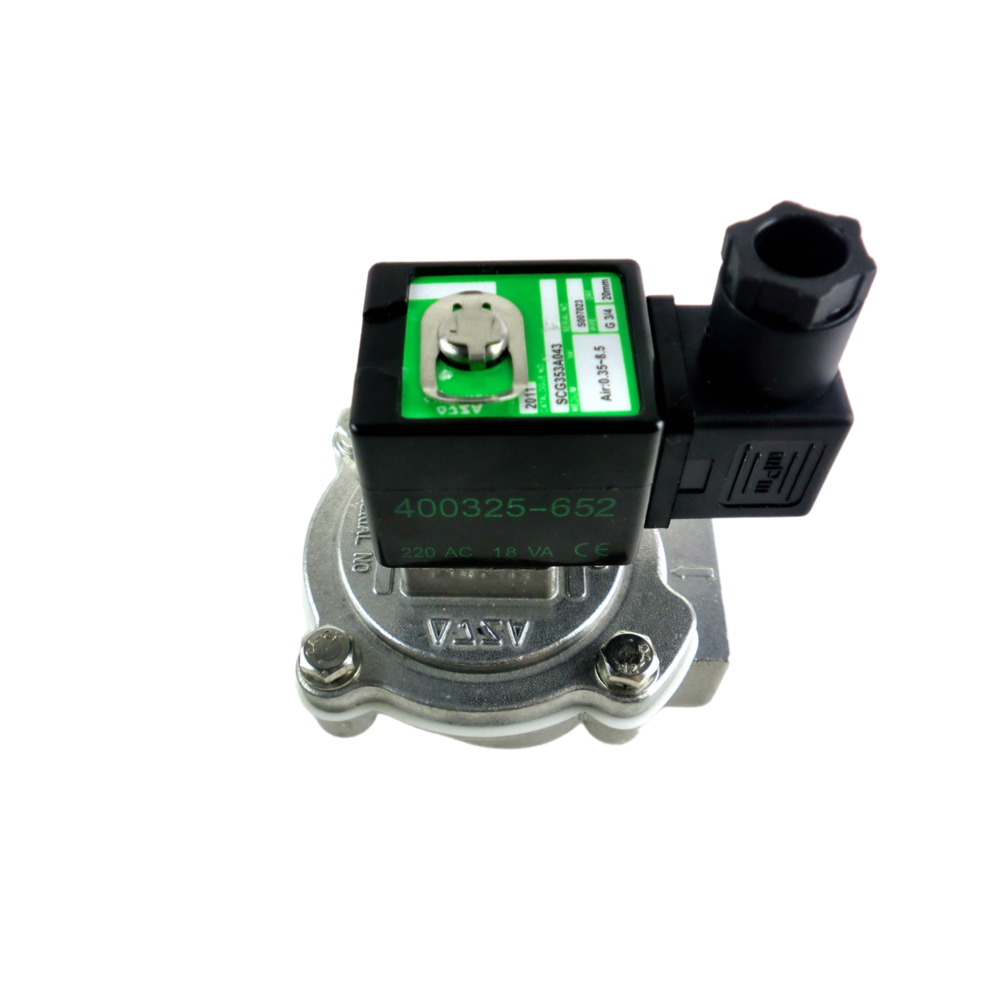

3/4'' Inch SCG353A043 Right Angle Baghouse Filter Diaphragm Valve
These valves are specifically developed for filter cleaning of dust
collectors and baghouses in reverse pulse jet systems. Those
applications require high peak pressure, high flow rates, long
life, and extremely fast valve opening and closing for effective
filter cleaning while minimizing compressed air waste. When
considering pulse valve characteristics, key attributes sought
alike include robust performance, reliability, and ease of use.
Today’s more popular pulse valves on the market offer users a
simplified design that helps to maximize valve performance,
translating into longer system uptimes. For the functional design
of a pulse valve, there are multiple connection options, including
threaded, dresser, and even a quick-mount option that enables
faster, easier, and more secure installation.
Applications:
Dust Collection Systems
Industrial facilities such as raw material crushing, cement
grinding, and clinker cooling require efficient dust collection
systems for handling high concentration and abrasive dust. Valves
used in these systems need to be wear-resistant and reliable. Our
353 series and SCG353 series are ideal choices for such
applications.
Flue Gas Purification
Steel metallurgy processes including blast furnace ironmaking and
steel rolling generate dust at high temperatures. Our high
temperature valves equipped with resistant diaphragms like Viton
are designed to handle such conditions. In addition, they are
suitable for environments with high-temperature flue gas that may
require cooling and explosion-proof certification.
Boiler Flue Gas Treatment
For coal-fired power plants, especially those with bag or electric
bag composite dust collectors, our large caliber submerged valves
provide efficient cleaning energy for continuous operation. These
valves ensure effective operation of the dust collector box over
the long term.
Waste Incineration Tail Gas Treatment System
Complex and corrosive flue gas in waste incineration systems
requires anti-corrosion valves with features like stainless steel
bodies, PTFE coating, and FKM fluororubber diaphragms.
Dust Collection for Food and Pharmaceutical Processes
In food and pharmaceutical industries handling ingredients like
flour, sugar, and milk powder, hygiene is crucial. Valves compliant
with design principles ensure cleanliness and prevent
cross-contamination. These valves meet FDA requirements and are
easy to clean.
Sawdust and Wood Processing
Wood processing facilities dealing with sawdust require the
reliable 353 series valves for collecting lightweight and fibrous
dust effectively. This includes sawmills, furniture factories, and
artificial board production sites.
Mineral Dust Collection
In mineral processing and quarrying operations, a robust valve
design is essential to withstand high abrasive dust during
crushing, screening, and transportation processes. Our valves
ensure durability and efficiency in handling mineral dust.
Technical Data:
| Model No | SCG353A043 |
| Port Size | G 3/4 Inch |
| Nornimal Size | Φ20 |
| Working Pressure | 0.3~0.8Mpa |
| Working Temperature | -5~+55℃ |
| Relative Humidity | ≤85% |
| Working Medium | Air |
| Protection Class | IP65 |
| Service Life | Over 1000000 times |
| Voltage | AC220V, AC110V, AC24V, DC24V |
Support and Services:
Our Product Technical Support and Services for Pulse Jet Valves
include:
- Installation guidance and support
- Troubleshooting assistance for operational issues
- Maintenance recommendations and schedules
- Product training and education for proper usage
- Warranty information and claims processing
Packing and Shipping:
Product Name: Pulse Jet Valves
Description: High-quality pulse jet valves for industrial
applications.
Features:
- Durable construction
- High performance
- Easy to install
Package Includes:
- 1 Pulse Jet Valve
- Installation instructions
Shipping Information:
- Shipping method: Standard
- Shipping time: 3-5 business days
- Shipping cost: $10
