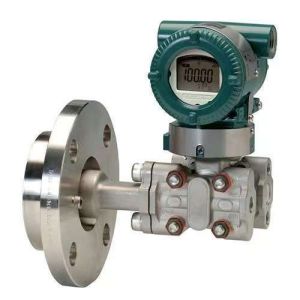

EJXC80A HART Level Transmitter with Diaphragm Seal System

M

1 to 100 kPa

−100 to 100 kPa

H

5 to 500 kPa

−500 to 500 kPa

V

Flush type

0.14 to 14 MPa

−0.5 to 14 MPa

Extended type

0.14 to 7 MPa

−0.5 to 7 MPa

M

1 to 100 kPa

−100 to 100 kPa

H

5 to 500 kPa

−500 to 500 kPa

V

Flush type

0.14 to 14 MPa

−0.5 to 14 MPa

Extended type

0.14 to 7 MPa

−0.5 to 7 MPa

Applicable Products (transmitter)

Differential Pressure Transmitter: EJX110A, EJA110E

Process connection size

• Flush Flanged Seal
  1 1/2-inch (40 mm), 2-inch (50 mm), 3-inch (80 mm)
• Extended Flanged Seal
  3-inch (80 mm), 4-inch (100 mm)
