Product Overview:

The 2-1/2 inch (DN65) Double Sphere Rubber Expansion Joint is engineered to absorb thermal movements, vibrations, and misalignments in piping systems. With dual spherical arches, this joint offers superior flexibility and pressure absorption compared to single sphere models. It is equipped with flanged ends that comply with PN10, PN16, and ANSI 150 standards, ensuring easy integration across international pipelines.

Tips:The above data is only part of the data, if you need a special size, please contact us.

Key Features:

Size: 2-1/2" (DN65)

Type: Double Sphere (for enhanced movement absorption)

Flanges: Galvanized or carbon steel, drilled to PN10, PN16, and ANSI 150

Working Pressure:

PN10 / PN16: Up to 16 bar

ANSI 150: Up to 150 PSI

Material:

Rubber body: EPDM / NBR / Neoprene (customizable)

Reinforcement: High-strength synthetic fiber

Movement Range:

Axial Compression / Extension

Lateral & Angular Movement

Temperature Range: -20°C to +120°C (depending on rubber type)

Selection Considerations:
Media Compatibility: Ensure the rubber material is suitable for the fluid (e.g., EPDM for acids and bases, NBR for oils).

Temperature Range: Typically -20°C to +120°C (varies by rubber type).

Motion Capability: Consult the manufacturer's specifications for permissible axial and lateral movement.

Standards & Certifications:
ISO 9001 (Quality Management)

EN 14931 (Rubber Expansion Joints)

ANSI/AWWA (For water applications)

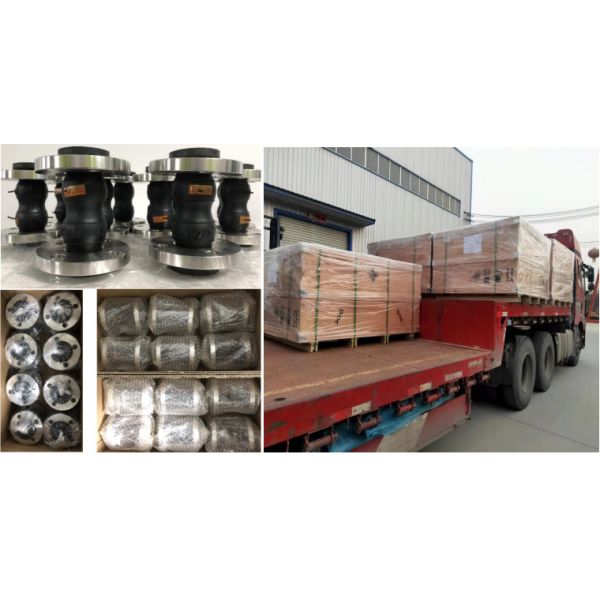

Double ball rubber joint delivery

Applications:

1.HVAC and chilled water systems

2.Pump and compressor connections

3.Chemical and petrochemical plants

4.Water treatment and desalination

5.Industrial pipelines requiring vibration damping and misalignment compensation
