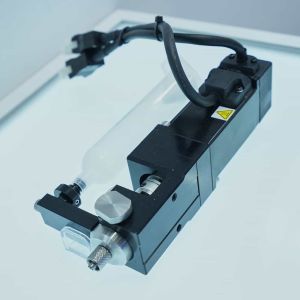

4P/8P/16P/32P Screw KSV1000A-U Concentric Auger Valve in Precision
Electronics Applications
The concentric screw valve equipped with a Luer tip offers high-precision dispensing for
microelectronic applications requiring accurate control of
high-viscosity adhesives. Commonly used in TWS earbuds, camera modules, FPC reinforcement, and micro speaker
assembly, this setup enables consistent dot or bead dispensing in confined
or complex spaces. The concentric design ensures stable output,
while the Luer needle provides fine-line control, clean cutoff, and
easy integration into automated production. Ideal for structural
bonding, sealing, and micro-adhesive applications in compact
electronic assemblies.
Core Advantages
- Precisely control the dispensing of small amounts of glue;
- Luer needles are easy to replace and come in a variety of
specifications (various calibers and lengths are optional);
- Can penetrate deep into structural gaps and adapt to complex
assembly structures;
- High-viscosity materials (such as structural glue and hot-melt
glue) can also be stably output;
- Easy to integrate with automated equipment (such as dispensing
platforms).
Main appliaction
- Camera AA Process Dispensing
- Lens Bonding
- Optical lens bonding
Technical parameters
| KSV1000A-U auger valve dispensing system |
| Work type | Auger type |
| Work mode | Timing, linkage |
| Rotator speed range | 10~500 rpm |
| Glues range | 5000-500000 cps |
| Trigger to dispense | Shot botton, trigger interface
( 24V active & passive ) |
| External output signal | In-discharging output, fault output |
| Other functions | Instant suction, RS-232C
communication, Chinese & English
display switching |
| Stator material | Stainless steel |
| Screw material | Tungsten steel |
Valve dimension
(W/O trigger cords) | 37 ×230×85mm (WHD) |
Controller dimension
(main body) | 240 × 100×260mm (WHD) |
FAQ
Q1: Is the valve easy to maintain?
A1: The valve has a modular structure, allowing for easy
disassembly and cleaning. With proper filtration and heating
management, it offers long service life with minimal maintenance.
Q2: What applications are most suitable for this valve?
A2: Typical applications include mobile phone mid-frame assembly,
camera module bonding, battery bracket sealing, automotive
electronics, and LED structural adhesion—especially where hot melt
or high-viscosity materials are involved.
Q3: What glue barrel size can be chosen?
A3: 10CC/30CC/50CC are available.
