    OTW Micro GPS Tracker Module UART TTL Output GNSS

    Ask Lasest Price
    Model Number : WT-62-UNL
    Price : CN¥37.81/pieces 1-499 pieces
    • Product Details
    • Company Profile

    OTW Micro GPS Tracker Module UART TTL Output GNSS

    WT-62-UNL Micro GPS Tracker Module with UART+TTL Output

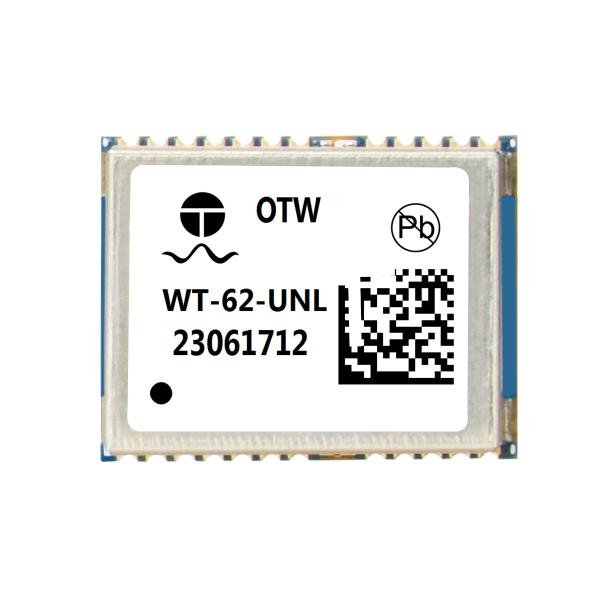

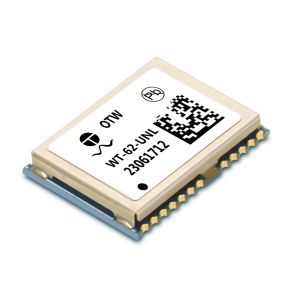

    WT-62-UNL GPS module front view WT-62-UNL GPS module side view WT-62-UNL GPS module technical diagram
    Product Overview

    Compact GNSS module with multi-constellation support, designed for precise vehicle tracking and positioning applications. Features UART+TTL output and low power consumption.

    Key Specifications
    AttributeValue
    TypeGNSS Module
    BrandOTW
    Operating ModeGPS+GLONASS+GALILEO+BDS
    Output ModeUART+TTL
    Baud Rate4800bps-921600bps (Default 9600bps)
    Voltage1.65V to 3.6V
    Dimensions12.2mm × 16mm × 2.4mm
    Technical Performance
    Receiver TypeGPS/QZSS:L1C/A, Galileo:E1-B/C, GLONASS:L1OF, BeiDou:B1
    ProtocolNMEA-0183 compliant or custom
    SensitivityTracking: -167dBm, Capture: -158dBm, Cold start: -148dBm
    Start TimeCold start: 26s (avg), Hot start: 1s (avg)
    Position AccuracyHorizontal: <2.0m (SBAS enabled)
    Update Rate1Hz-18Hz (default 1Hz)
    Physical Characteristics
    Interface24-pin stamp holes

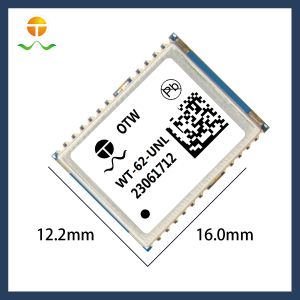

    Dimensions16.0mm × 12.2mm × 2.4mm (±0.5mm)
    Operating Temperature-40℃ to 85℃
    Storage Temperature-40℃ to 85℃
    Power Specifications
    • Operating Voltage: 1.65V-3.6V
    • Power Consumption: 21mA @3.0V (operation mode)
    • Power Saving Mode: 5.3mA @3.0V (PSM, 1Hz)

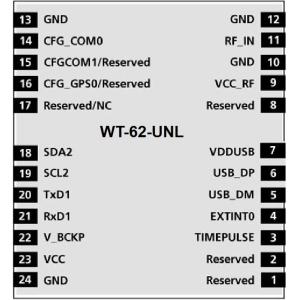

    WT-62-UNL module pinout diagram WT-62-UNL module dimensional drawing WT-62-UNL module application example
    Applications

    Ideal for vehicle tracking systems, surveying equipment, precision agriculture, fleet management, and other positioning applications requiring multi-constellation GNSS support.
