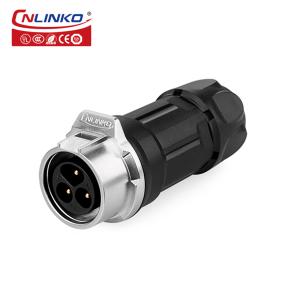

CNLINKO Waterproof Push-pull Connector 3 Pin Customize Plug Audio Female Socket Male Female Connector Plug 3 Pin Power Connector

CNLINKO waterproof push-pull connector 3 pin customize power connector plug audio female Socket

Features:


1: With multi-core(2-9 core) design to fit with different industrial needs.

2: Design snap lock ensures stable and security firm.

3: Humanization design achieved blind operation.

4: Both soldering and crimping are available.

5:Socket and internal made of zinc alloy,with well protected electromagnetic and radio frequency interference.

6: Gold-plating;high strength corrosion resistance and electrical conductivity.

7: Shell made of material PBT,stable electrical performance,high strength and resistance to pressure,high temperature resistance,anti-explosion,anti-corrosive.

8: Both cable connector to cable connector and cable connector to panel mounting are available.

9: IP68 when mated.

Product Description


Specifications
Specifications
Connecting modeLatching Lock connect
Protection levelIP65/IP67
Cable specification1.0-1.5mm2 /18-16AWG
Diameter rangeΦ3mm ~Φ8.5mm
Contact diameter×QtyΦ1.5×3
Current rating(A)10A
Temperature rise

10A contact temperature below 30℃

12A contact temperature below 40℃

15A contact temperature below 50℃

Operating voltage(AC.V.rms)500V
Withstanding voltage(AC.V)1min2500V
Contact resistance<2.5mΩ
Insulation resistance>500MΩ
Durability≥500 mating&unmating cycles
Temperature rating-40°C~80°C
Method of connecting cableSoldering
Prevent the combustion levelUL94-V0
Material
shell & Insulated partsHigh performance engineering plastics
Hardware metalZinc alloy(pearl hard chromium)
Contact pinCopper alloy(gold-plated 4U)
SpringStainless steel
SealingSilica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
