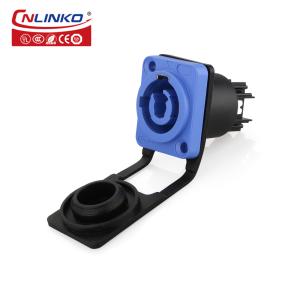

Industrial DC Plug Solar Panel Powercon Connector 3 Pin Waterproof IP67 Plastic Plug and Socket Connector

    Buy cheap Industrial DC Plug Solar Panel Powercon Connector 3 Pin Waterproof IP67 Plastic Plug and Socket Connector from wholesalers

    Buy cheap Industrial DC Plug Solar Panel Powercon Connector 3 Pin Waterproof IP67 Plastic Plug and Socket Connector from wholesalers
    • Buy cheap Industrial DC Plug Solar Panel Powercon Connector 3 Pin Waterproof IP67 Plastic Plug and Socket Connector from wholesalers
    • Buy cheap Industrial DC Plug Solar Panel Powercon Connector 3 Pin Waterproof IP67 Plastic Plug and Socket Connector from wholesalers
    • Buy cheap Industrial DC Plug Solar Panel Powercon Connector 3 Pin Waterproof IP67 Plastic Plug and Socket Connector from wholesalers
    • Buy cheap Industrial DC Plug Solar Panel Powercon Connector 3 Pin Waterproof IP67 Plastic Plug and Socket Connector from wholesalers
    • Buy cheap Industrial DC Plug Solar Panel Powercon Connector 3 Pin Waterproof IP67 Plastic Plug and Socket Connector from wholesalers
    • Buy cheap Industrial DC Plug Solar Panel Powercon Connector 3 Pin Waterproof IP67 Plastic Plug and Socket Connector from wholesalers

    Industrial DC Plug Solar Panel Powercon Connector 3 Pin Waterproof IP67 Plastic Plug and Socket Connector

    Ask Lasest Price
    Brand Name : CNLINKO
    Model Number : YF-24-J03PE-02-001
    Certification : CUL,UL,CE,ROHS,CCC,ISO9001
    Price : $5.90-6.90
    • Product Details
    • Company Profile

    Industrial DC Plug Solar Panel Powercon Connector 3 Pin Waterproof IP67 Plastic Plug and Socket Connector

    Industrial DC plug solar panel Powercon connector 3 pin waterproof IP67 plastic plug and socket connector

    Product Description

    Lock 3-pin device connector with contacts for neutral, straight, pre-fitted safety ground.
    High current capacity 20A/250VAC.
    Use different colors (blue input) for input and output (gray output) control to avoid the possibility of inter-matching.
    Quick and easy locking system.
    Use the United States imported beryllium copper for silver-plated double quality assurance, increase current stability and effective temperature rise control.
    The waterproof product meets IP65/IP67 protection level in the assembled state.
    Rated current: 20A rms.
    Unique inner core copper needle anti-outlet design.

    Specifications
    Specifications
    Connecting modeLatching Lock connect
    Protection levelIP44/IP65
    Cable specification2.5mm2 ~ 4mm2 /14~12AWG
    Diameter rangeΦ8mm ~Φ12mm
    Contact diameter×QtyΦ2.0×3
    Current rating(A)20A
    Operating voltage(AC.V.rms)500V
    Withstand voltage(AC.V)1min2500V
    Contact resistance<1mΩ
    Insulation resistance>500MΩ
    Durability≥500 mating&unmating cycles
    Temperature rating-40°C~80°C
    Method of connecting cableSolder
    Prevent the combustion levelUL94-V0
    Material
    Shell&insulated partsHigh performance engineering plastics
    Hardware metalZinc alloy(pearl hard chromium)
    Contact pinCopper alloy(gold-plated)
    SpringStainless steel
    SealingSilica gel
    Main characteristics
    Sealed against dust and fluid (IP65/IP67)
    Vibration resistance,impact resistance,stretching resistance
    1/4 bayonet connect; socket with cover
    Application industries
    Stage equipment - The smart grid
    Medical equipment - Server
    Solar energy equipment - Ship equipment
    Electric power equipment - Vehicle equipment
    Communications equipment - Heavy machinery
