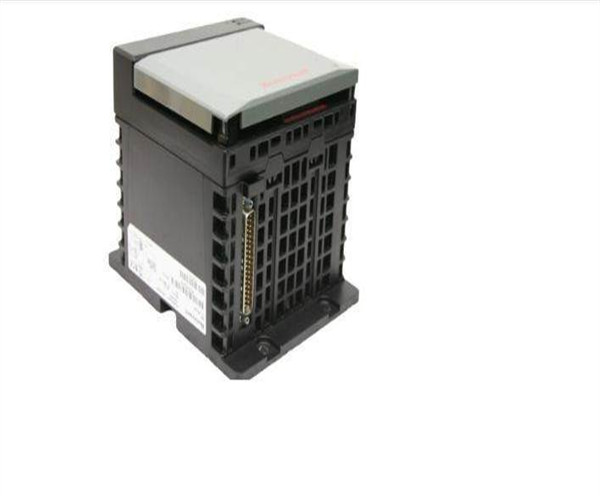

Honeywell TC-RPCXX1 Redundant Rack Power Supply Module Remote I/O Devices 255 Simplex with PNC001 Digital I/O Module

Product Description of TC-RPCXX1

Power Supply Type:Redundant Rack

Legal Notice:Everest-Instruments is not an authorized dealer for this product. Mentioned trademarks and brand names are for identification purposes only.

The Honeywell TC-RPCXX1 Redundant Rack Power Supply Module is designed to deliver unparalleled reliability and efficiency in industrial control systems. This module is equipped with dual power supplies in an active-active configuration, ensuring continuous operation even in the event of a primary failure.

Featuring a wide operating temperature range from -20°C to +55°C, it’s suitable for a variety of industrial environments, making it an ideal choice for plants, factories, and other high-demand settings where downtime is not an option.

With a current capacity of up to 5A, this power supply can handle a broad spectrum of power demands without strain. It’s compatible with standard 19″ rack mounting, facilitating easy integration into existing infrastructure.

Crafted with robust materials for durability and long-term performance, the Honeywell TC-RPCXX1 is designed for minimal maintenance, reducing operational costs and enhancing system uptime.

Installation and setup are straightforward thanks to its intuitive design and comprehensive documentation. This ensures that users can quickly integrate the module into their systems, minimizing downtime and maximizing productivity.

• Manufacturer : Honeywell

• Coated : TK- RPCXX1

• Input Voltage Range : 85 – 265 VAC

• Input Power : 110VA, 110 W (estimated)

• Maximum Inrush Current : 20 A

• Frequency Range : 47 – 63 Hz

• Total power output maximum, watts : 75W@60 C

• Backplane Output Current, Maximum1 : 1.5A@1.2V / 4A@3.3V / 13A@5.1V / 2.8 A @ 24.0 V

• Input Power Wiring : #14 AWG (1.4 mm)

• Annunciation User Connection2 : Solid state relay rated for 120 VAC/DC t 100ma maximum

• Dimensions (L x D x H) : 14.4 x 13.7 x 17.5 cm (5.67 x 5.39 x 6.89 in)

• Weight – Approximate : 1.1 kg (2.5 lb.)

• Redundant Power Supply Cable Model (3ft) : TC-RPSC03 (one required per power supply)

• Power Supply Cable Weight – Approximate : 0.57 kg (1.25 lb.)

• Location3 : Upright mounting, typi lly above/below chassis to be powered.

• Dimensions (L x D x H) : 3.4 x 14.4 x 15.0 cm (1.34 x 5.67 x 5.91 in.)

• Weight : 0.228 kg (0.50 lb.)

• Shipping Weight : 2 Kg
