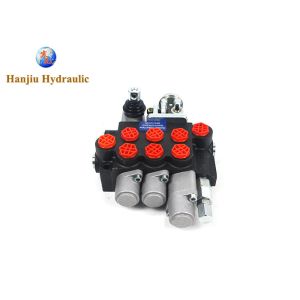

    Buy cheap Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick from wholesalers

    Buy cheap Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick from wholesalers
    • Buy cheap Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick from wholesalers
    • Buy cheap Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick from wholesalers
    • Buy cheap Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick from wholesalers
    • Buy cheap Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick from wholesalers

    Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : 3P40-J
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 300000 sets per year
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick

    Monoblock Directional Control Valve 40 L/Min (11GPM) 3 Spool 4 Positions Double Actiong + Joystick

    P40 series valves with middle-high pressure monoblock construction is developed based on Europe technology.

    .Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.

    .Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.

    .Oil way: Parallel circuit, power beyond option

    .Control Way: Manual, Hydraulic,Pneumatic, Electro-pneumatic, Electro-hydraulic,
    Solenoid, Joystick, Joystick and Cable, Micro Switch

    .Valve construction: monoblock construction, 1-7 levers.


    Ambient temperature-40C...+60C
    Viscosity12 ...800 mm2/s
    Fluid temperature-15C...+80C
    Filtration10 to NAS 1638
    Max operating pressure250 bar
    Back pressure50 bar
    Nominal flow40 l/min
    Leakage(A,B-T)15cm3/min at 120bar
    Spool stroke6 mm
    Actuating force< 200 N
    Modification/ Spoolswith 1 to 7




    Pressure range:

    Maximum supply pressure: 250Bar (3625,94 psi)

    Maximum pressure on return: 50Bar (725,19 psi)

    Maximum pressure on sections: 300Bar (4351,13 psi)



    The opening pressure of the bypass valve increases proportionally with increasing flow rate:

    180 bar (2610,68 psi) at 10 l/min

    190 bar (2755,72 psi) at 20 l/min

    200 bar (2900,75 psi) at 30 l/min

    210 bar (3045,79 psi) at 40 l/min


    It is recommended to check and set the correct pressure before commissioning.

    Self-adjustable, full rotation 30Bar (435,11 psi change).
