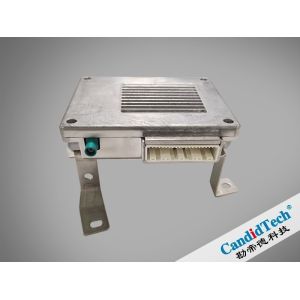

T5 AVM Vehicle 360 AVM System CVBS AHD Camera Input AHD Signal LVDS
Signal Output
OVERVIEW
CandidTech's T5 360AVM solution is a versatile and advanced
automotive imaging system. It is support CVBS cameras and AHD
cameras for input with NTSC/PAL format, and output CVBS signals, AHD signals, as well as LVDS signals
with NTSC/PAL format.
This solution offers flexible features such as FOV (Field of View)
cropping and the ability to overlay trajectory lines and other
relevant function. After processing, the controller outputs the
enhanced image data to the in - car infortainment display screen
for clear visualization.
With a maximum output resolution of 1920*1080P, the T5 360 AVM
solution can seamlessly stitch images to create a vivid 360 -
degree bird's - eye view. This provides drivers with a
comprehensive and intuitive view of the vehicle's surroundings,
significantly enhancing driving safety and convenience.
SPECIFICATIONS of T5 AVM's ECU
Working Voltage | 9~16VDC |
| Working Current | <2A @13.5VDC |
| Quiescent Current | <1mA |
| Related Power Consumption | <27W |
| Cold Startup Time | <4S |
| Operation Temperature | -40℃ ~ 85℃ |
| Storage Temperature | -40℃ ~ 95℃ |
| Power Supply Mode | POC |
| Video Switching Delay | <50ms |
| Output Frame Rate | 30 fps |
| Delay between Images | <100ms(less than 3 frames) |
SPECIFICATIONS of the 360 Panoramic Cameras
Image Sensor | CMOS |
| Working Voltage | 6~16VDC |
| Working Current | 150mA@8VDC |
| Power Supply Mode | POC |
| Working Temperature range | -40℃ ~ 85℃ |
| Storage Temperature range | -40℃ ~ 95 |
| Operating Humidity | 90%RH |
| Waterproof Level(with wiring harness) | IP69 |
| Active Pixels | 1280(H) x 960(V) (output resolution of the camera needs to be defined by the in-car
infortainment screen) |
| Input Camera Signal | CVBS/AHD/LVDS |
| Output Video Signal | LVDS |
| Horizontal FOV | 200±5° |
| Vertical FOV | 134±5° |
| S/N Ratio | 43.5dB MAX. |
| Dynamic Range | ≥120dB |
| Automatic White Balance (AWB) | Yes |
| Automatic Gain Control (AGC) | Yes |
| Automatic Exposure Control (AEC) | Yes |
| Frame Rate | 30 fps |
| Shutter Type | Electronic Rolling Shutter(ERS) |
| Minimum Illumination | 1.0lux |
| Response Time | <500ms |
| Definition | Horizontal ≥ 600 lines; Vertical ≥ 600 lines |
| Other Parameter Customization | Support |
What are the main advantages of CandidTech's to develop the 360 AVM
System?
As a 10-year experienced Tier1/Tier2 supplier for 360 degree
surround view automotive OEM/ODM parts, we have mastered advanced
sensor fusion technology. We support integrate multiple high -
resolution cameras, ultrasonic sensors and sometimes even radar
sensors.
Our in - house developed high - performance image processing
algorithms are a key advantage. These algorithms can quickly
process the large amount of image data captured by the cameras.
They enhance image quality, correct for lens distortion, and
perform real - time stitching of multiple camera views to create a
seamless 360 - degree bird's - eye view. This ensures that the
driver can clearly see all potential obstacles and hazards around
the vehicle, even in complex lighting conditions.
We offer highly customized software solutions tailored to the
specific needs of different automotive manufacturers. Our software
can be integrated with the vehicle's existing in - car
entertainment system, driver - assistance systems, and ECU. This
allows for seamless operation and control of the 360 - degree
surround - view system.
We ensure reliable connectivity and high speed data transmission.
Using advanced communication protocols like GMSL (Gigabit
Multimedia Serial Link), we can transfer large amounts of image
data from the cameras to the central processing unit in real time
without signal loss or delay. This is crucial for the smooth
operation of the system, especially when it comes to real - time
applications like dynamic parking guidance.
Our products are designed to have excellent environmental
adaptability. They can withstand a wide range of temperatures, from
extremely cold to very hot conditions. With high - level waterproof
and dust - proof ratings of IP69K, our cameras and sensors can
function normally in various harsh weather and road conditions.
This ensures the long - term reliability and stability of the
system, which is highly valued by automotive OEMs.
For more information innovative features and functions of Candid's
360 surround view system, please visit [https://www.candidelectronics.com/around-view-monitor-system-solution-avm_nc7].
Our current product lines cover vehicle cameras for different
applications: including rear view, front view, side view and around view, Dash Cameras,
Around View Monitoring Systems, ADAS products,CMS(Camera Monitor
System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please email: sales2@candidelectronics.com for more details.
