Product specifications
| Gas Detected | CO2 and O2 |
| Measure range | CO2 0-5000PPM, O2 0-30%VOL |
| Detection principle | Infrared Ray(CO2), Electrochemical(O2) |
| Instrument lifespan | Sensors for 2-3 years, instruments for no less than 5 years |
| Linearity error | ±2%FS |
| Response time | T90<30S(25℃) |
| Sampling Method | Pumping suction |
| Resolution | CO2 1PPM, O2 0.1%VOL |
| Signal Output (optional function) | High-speed data transmission by USB, available for data downloading
and printing |
| Response Time | T90<30S(25℃) |
| Operating language | Chinese/English |
| Temperature | -20℃～50℃ |
| Explosion-Proof | Ex ia II CT4 |
| Alarm mode | Sound, light, vibration |
| Dimensions | 205*75*32mm |
| Recovery Time | ≤10S |
| Display | LCD dot matrix display |
| Gas unit | Units are switchable |
| Humidity | 0-90%RH |
| Degree of protection | IP66 |
| Operating time | 100h(pump off) |
| Weight | 300g
|
Product Overview
SKY2000 series gas detector is a kind of gas measuring equipment
with high precision and quick response. The built-in sampling pump
has fast sampling speed and large flow rate, which ensures the
response time of the detector. Unique design, small size and
convenient transportation. High-strength special engineering
plastic shell is suitable for various occasions and environments.
We are committed to providing you with the most reliable, accurate
and safe gas detection solution.
SKY2000 detector is a gas measuring device with fast response speed
and high precision. SKY2000 detector is equipped with a built-in
sampling pump, fast sampling speed, 10-level adjustable pump
suction, high flow rate, up to 800ml/min, ensuring the response
time of the detector.

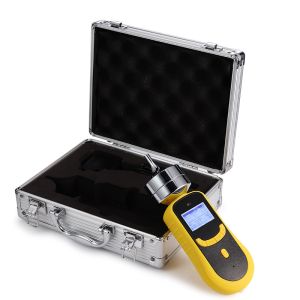

Product Picture
Applications
This device is widely used in these filed:
●Petrochemical & Chemcial Industry
●Municipal Engineering & Utilities
●Agricultral & Environmental Protection
●Electronic
●Food & Pharmaceutical Industry
Product Advantage
1) Employing original imported first-class brand sensor.
2) (optional) High speed data transmission by USB, which can
download and print data.
3) LCD dot matrix display, the gas type, unit, concentration, local
time can be showed on the screen.
4) Support Chinese and English operation, easy to shift.
5) Built-in micro sampling pump, 10 grades of suction are
available.
6) Explosion-proof certification, explosion-proof grade: Ex ia IIC
T4 Ga
Product Functions
1) Monitor the specified gas concentration in the environment and
enclosed space, and give an alarm.
2) It has the functions of automatic calibration and zero
calibration, which makes the detection more accurate and reliable.
3) Restore the factory settings with one button, trouble-free
4) Large capacity lithium polymer rechargeable battery.
5) Pump suction and the suction amount can be adjusted.
6) High-strength engineering plastic shell, non-slip, waterproof,
dustproof and explosion-proof.
7) Elegant and exquisite aluminum alloy suitcase.
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co.,
Limited(Safegas)is a company that focuses on the design, production
and sales of gas detection equipment and system for 16 years.
With"gas detector" as the core product, we have completed
production line and solutions according to different industries,
such as Oil, Chemical, Medicine, Energy, Environmental Protection,
Electronic, Municipal Engineering, Agriculture and Forestry,
Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller
panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000,
SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof
certifications from IECEX and ATEX, ensuring product quality, which
are comparable to international brand like Honeywell, MSA, RAE, but
our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
