Ring Making Wire Forming Steel Angle Resistance 8Mm Copper Butt
Welding Machine
Product Introduction:
The butt welding machine heats the workpiece to be welded through
resistance heating. When the current passes through the contact
surface of the workpiece, the contact surface rapidly heats up due
to the presence of contact resistance, reaching the temperature
required for welding. Subsequently, a certain amount of pressure is
applied to force the contact surfaces of the two workpieces to come
into close contact, causing plastic deformation or partial melting
of the material, filling the gaps between the interfaces, and
forming a firm welded joint. Finally, the welding area begins to
cool and solidify while or after applying pressure. After a certain
period of cooling and solidification, the two workpieces are firmly
welded together.
Features:
1. Pneumatic or hydraulic pressurization is used: with high
clamping force, it does not slip during forging and welding of the
workpiece, and the welding performance is stable.
2. Dual guide rail guidance: anti-wear, smooth and stable movement,
high alignment of workpiece interfaces.
3. Top forging mechanism: Adopting a paint mixed top forging
mechanism, it works smoothly, has high top forging force, and high
efficiency.
4. Mold electrode: Chromium zirconium copper, excellent material,
not afraid of high temperature wear, good conductivity.
Technical Parameters:
| Item/Model | | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 |
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
| Throat | MM | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
Max.Welding Capaciry A3 steel | MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 | 6+6 |
Detailed Images:
Stable Pressure Application
The direct pressure integrated pressure application mechanism has
good follow-up and does not slip during workpiece welding, with
stable speed.

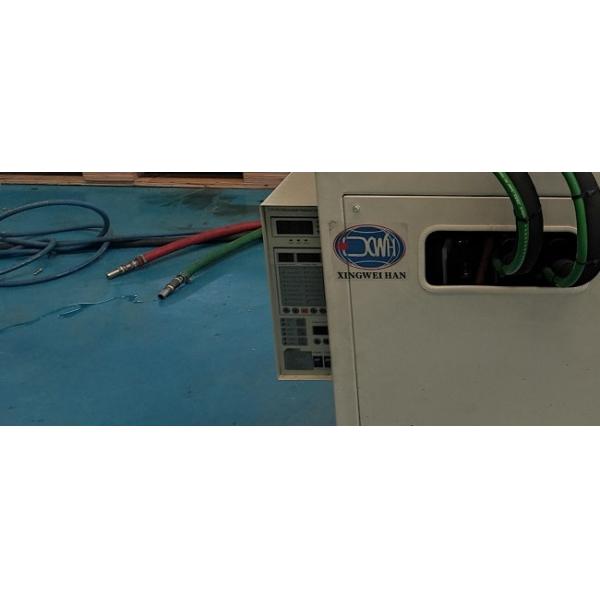

Easy To Operate
Using a microcomputer controller, it can analyze, adjust and
control the welding process parameters of the welding machine, and
the operation is simple.
Copper Alloy Electrode
Made of high-quality materials such as chromium zirconium copper,
it has good conductivity and can be used with confidence.

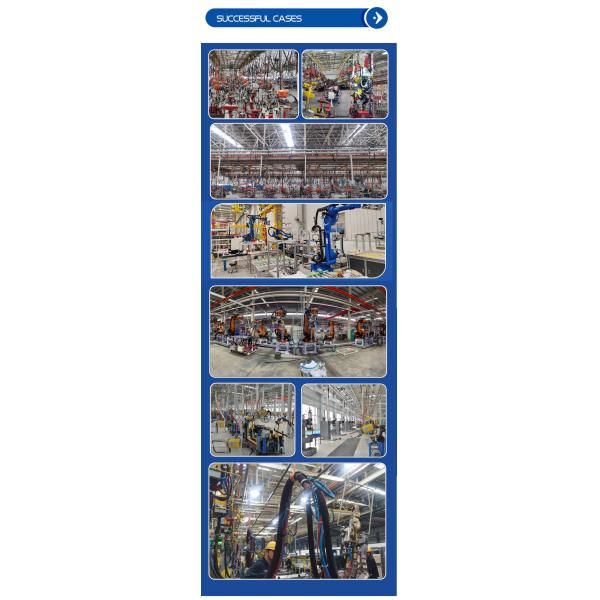

Scence Images:
Application:
FAQ:
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized
machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection
by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can
provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to
send us payment.
5. How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the
machine during the transportation?
We have rich experience on international transportation. All the
packing are extra thickness carton filling with protective PE foam
and waterproof membrane. No damage happened during transportation
until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
