    Hot Cutting Plastic Pelletizing Machine

    Ask Lasest Price
    Brand Name : LANGBO
    Model Number : LB
    Certification : CE, ISO
    Price : USD, EUR
    Payment Terms : L/C,T/T
    Supply Ability : 10 SETS PER MONTH
    Delivery Time : 60 WORKING DAYS
    • Product Details
    • Company Profile

    Hot Cutting Plastic Pelletizing Machine

    Hot Cutting Plastic Pelletizing Machine
    PVC Hot Cutting Pelletizing Line / Plastic Granulating Machine
    Applications
    With different screw designs, this machine can granulate recycled materials including rigid PVC, soft PVC, and waste PVC. It enables continuous, stopless production and features pneumatic conversion with strong-wind blowing. The system includes an adjustable stainless steel storage container and operates at high speeds for extended periods while maintaining stable extrusion.
    Key Features
    • Advanced equipment with precise pelletizing and high production capacity
    • Conical double-screw extruder, ideal for processing PVC powder efficiently

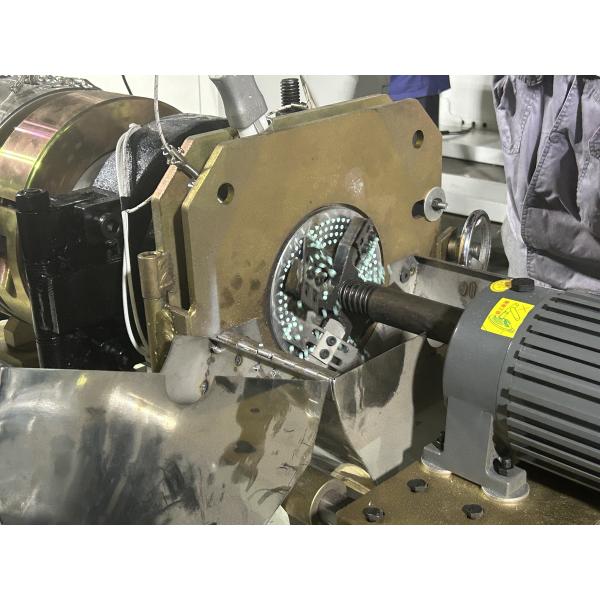

    • Hot-cutting on mold face ensures even cutting and consistent pellet shape
    • Complete auxiliary system including pellets cooling and classifying
    Process Flow
    Raw material + additive → Mixing → Conveying feeding → Hopper feeding → Conical twin screw extruder → Hot face cutting → Cyclone separator → Vibration sieve → Blowing system → Storage hopper → Finished product packing
    Technical Specifications
    Model NumberScrew Diameter (mm)Rotational Speed (rpm)Pellet Size (mm)Main Motor Power (kw)Heating Power (kw)Production Capacity (kg/h)Central Height (mm)Net WeightOverall Size (mm)
    SJSZ4545/901-453-4159.670-80100028003300*1200*2000
    SJSZ5151/1051-45.53-42211.580-120100030003360*1290*2100
    SJSZ5555/1101-403-42218150-180100035003620*1350*2200
    SJSZ6565/1321-383-43724250-300100040004235*1520*2450
    SJSZ8080/1561-36.93-45536320-450100050004750*1550*2460
    SJSZ9292/1881-34.73-411088650-800100055006000*1600*2500
    Product Images

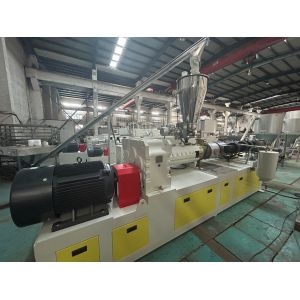

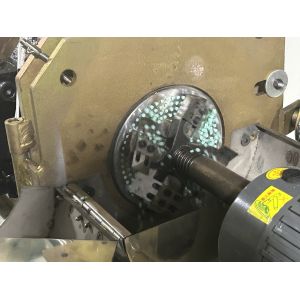

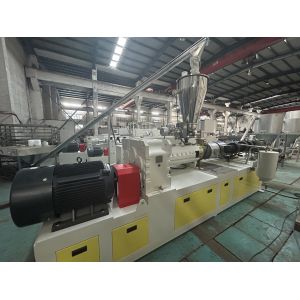

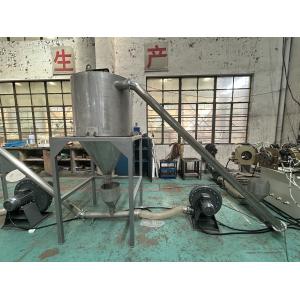

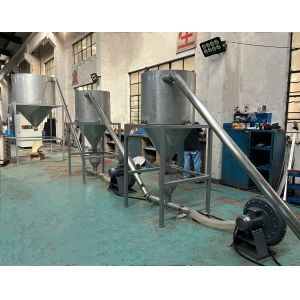

    Hot Cutting Plastic Pelletizing Machine view 1 Hot Cutting Plastic Pelletizing Machine view 2 Hot Cutting Plastic Pelletizing Machine view 3 Hot Cutting Plastic Pelletizing Machine view 4 Hot Cutting Plastic Pelletizing Machine view 5
