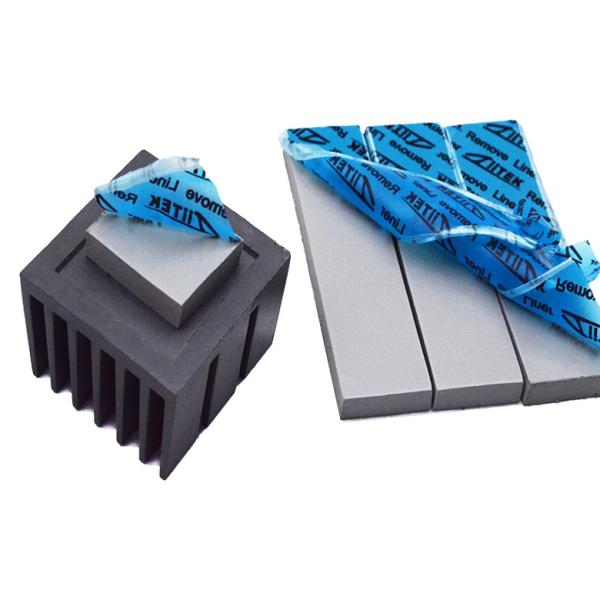

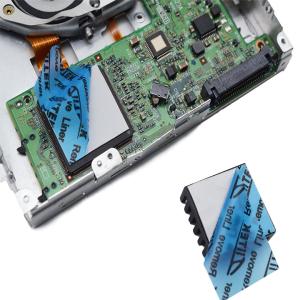

TIF100-25-02F Ultra-Soft Silicone Thermal Conductive Pad

TIF100-25-02F Ultra-Soft Silicone Thermal Conductive Pad

The TIF^®100-25-02F is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF^®100-25-02F is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Features:

> Good thermal conductive: 2.5W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> RoHS compliant
> UL recognized
> Moldability for complex parts
> Naturally tacky needing no further adhesive coating

Applications:

> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp

Typical Properties of TIF®100-25-02F Series
Property	Value	Test method
Color	Gray	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Density	2.45g/cm³	ASTM D297
Thickness range	0.020"(0.5mm)~0.200"(5.0mm)	******
Hardness	60 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 160℃	***
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149
Dielectric Constant	4.3 MHz	ASTM D150
Volume Resistivity(Ohm-cm)	7.1X10¹²	ASTM D257
Fire rating	94 V0	UL E331100
Thermal conductivity	2.5W/m-K	ASTM D5470
Outgassing (TML)	0.40%	ASTM E595

Products Thickness:
0.020 inch to 0.200 inch(0.5mm to 5.0mm)

Products Size:

8"*16"(203mm*406mm)
TIF series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF series sheets type can add with fiberglass reinforced.
