    750 cd/M2 Industrial TFT Display 5.7 Inch LCD Module TFT 320x240 TN RGB Interface

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z057Q01
    Certification : ISO9001 / ISO14000/ROHS
    Price : 38~60usd/pc
    Payment Terms : T/T
    Supply Ability : 200k/month
    Delivery Time : 3-4 weeks for mass production
    • Product Details
    • Company Profile

    750 cd/M2 Industrial TFT Display 5.7 Inch LCD Module TFT 320x240 TN RGB Interface

    5.7 inch TFT LCD Display Module 320x240 TN RGB Interface 750cd/m2


    Display General Description

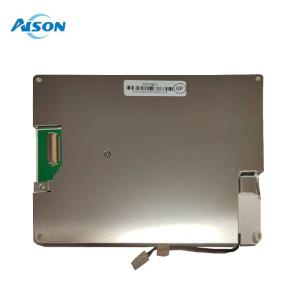

    Z057Q01 is a 5.7-inch diagonal 320x240 standard TFT LCD display module. The view direction is 12 o'clock, grayscale inversion is at 6 o'clock, and the aspect ratio is 4:3.

    Measuring 144×104.6 mm, with an active area of 115.2×86.40 mm,the TFT display module integrates HX8218 and HX8615 driver ICs, supporting a 18-bit RGB Interface. Its 5.7-inch TFT LCD panel boasts a brightness of 750 cd/m2 and a contrast ratio (typical value) of 300:1. Thanks to its anti-glare display surface, reflections are minimized, ensuring superior image quality.

    Operating within a temperature range of -20 to +70℃, and with a storage temperature spanning from -30 to +80℃, this module is built to withstand diverse environmental conditions.


    General Data

    Model Name5.7 inch TFT LCD Display
    Resolution320x240
    Model Size (W*H*T)mm144.00*104.6*13.00mm
    Display Area (W*H)mm115.20*86.40mm
    Interface18 bit RGB
    Display ModeNormally White TN,Transmissive
    Viewing12:00 o'clock
    Brightness750 cd/m2
    Pin number33
    Drive ICHX8218C04+HX8615C
    BACKLIGHT TYPE21-DIES WHITE LED
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

    Drawing


    Product Details



    TFT Applications


    This TFT LCD module is versatile and suitable for a wide range of applications:
    Mixing Consoles
    Medical Monitoring Equipment
    Industrial Equipment Control Panels
