| Brand Name : | GC |
| Certification : | ISO |
| Delivery Time : | In stock |
| Payment Terms : | TT |
| Supply Ability : | 100 Sets |
| Price : | Negotiated |
| Model Number : | GC-QK-E |
Model: GC-QK-E
Product introduction

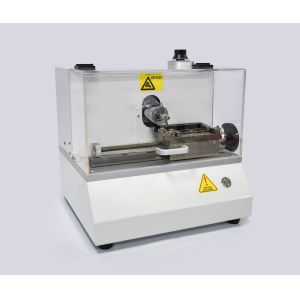

The plastic electric notch prototype machine(BST-QK-D) is a sample
making equipment used in the impact toughness test of non-metallic
materials by IZOD and simply supported beam impact testing machine.
Laboratories of scientific research institutions, colleges and
universities, non-metallic materials manufacturers and other units
to make notched samples can use the impact notching machine.
Reference standard for tool notch of prototype
ISO180-2000 Plastics - Hard materials - Determination of IZOD
impact strength
GB/T1843-2008 Rigid plastics - IZOD impact testing machine
JB/T8761-1998 Impact test machine for plastic IZOD
ASTM D256-2010 Test Method for Determining IZOD Pendulum Impact
Strength of Plastics
ISO179-2000 Determination of Impact Strength of Plastic-Hard
Material Simply Supported Beams
GB/T1043-2008 Impact Test Method for Rigid Plastic Simply Supported
Beam
JB/T8762-1998 Plastic Simply Supported Beam Impact Testing Machine
Technical index
Table stroke: >160mm
Feed speed:30mm/min
Sample type: Type 1, Type 2, Type 3
Gap type: Type A, Type B (optional), Type C (optional)
Tool parameters of plastic notch prototype machine
| TypeA | 45±1° r=0.25±0.025 |
| TypeB | 45±1 r=1.0±0.025 |
| TypeC1 | 45±1 r=0.1±0.02 |
| TypeC2 | thickness 1=2±0.1 r<=0.1 |
| TypeC3 | thickness 2=0.8±0.1 r=0.2±0.05 |

|
