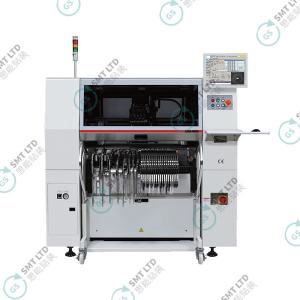

Following the sucessful SM451, here comes the Hanwha SM485P.
A high precision multi-functional placement system equipped with
four Force Control Precision Heads. The SM485P can place any
component available to it. So be it radial through hole, flip chip,
COB, POP, throigh hole connector, sheild can or a Lego Man, the
machine will do it.
Hard to pick parts by traditional vacuum nozzles are picked by
gripper nozzle. As standard the machine will handle parts in height
up to 32mm, however an option is available to handle up to 44mm.
The machine uses 4 small cameras where alignment is done on the fly
and any large parts are aligned using the stage camera which will
see components up to 150mm in length.
The machine is not designed for speed, but Odd form capability and
flexibility. Below are just some features:
Features:
1. Gripper Nozzles for Connectors
2. Laser light for aligning pin and can shield components
3. Force Control Z-Axis of precision head
4. Through Hole Component Placement
5. Connector Placement
6. 0201 component recognition as standard
7. 120 x 8mm Feeder Capacity
8. High Accuracy ±30µ@3σ/QFP, ±40µ@3σ/Chip
9. Small Footprint of just 1650mm x 1690mm x 1485mm
10. 4.7KVA Max Power
Options:
1. Lifted Lead Check Sensor
2. Board Height sensor
3. Component Value Verifier (LCR Checker)
4. Intelligent Feeders
5. Multi Tray Feeders
6. SMART Feeders (Cut Strips)
7. Radial Feeder
8. Bowl Feeder
