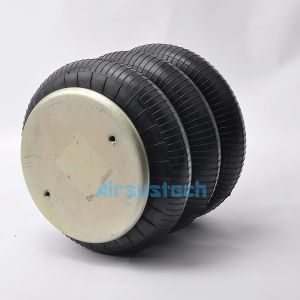

Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension

    Buy cheap Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension from wholesalers

    Buy cheap Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension from wholesalers
    • Buy cheap Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension from wholesalers
    • Buy cheap Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension from wholesalers
    • Buy cheap Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension from wholesalers
    • Buy cheap Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension from wholesalers
    • Buy cheap Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension from wholesalers
    • Buy cheap Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension from wholesalers

    Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 3B7330
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension

    Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension


    Product Introduction


    Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.



    3B7330 Technical Parameters


    Nut/blind nut
    Top plate screw (nut) teeth: 2X3/8-16UNC
    Bottom cover plate screw (nut) teeth: 2X3/8-16UNC
    The screw center distance of the cover plate: 157.5mm
    Air hole/air inlet/air fittings
    G3/8
    The distance betweem the air hole/air inlet/air fittings and the screw: 73mm
    Rubber Bellows
    Rubber bellows stroke: 297mm
    Rubber bellows diameter: 295mm
    Plate diameter
    Top plate diameter (width): 231 mm
    Bottom cover plate diameter: 231 mm
    Bumper block/bumper block
    Without
    Belt loop/Belt loop/Girdle hoop
    With two pieces of belt loop/girdle hoop


    Pneumatic application-static characteristic values
    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]
    3808.811.915.118.421.725.123.6
    34010.714.418.222.025.929.821.6
    30012.316.520.825.129.533.719.2
    26013.718.222.927.632.336.916.6
    22014.819.524.629.634.639.513.8
    18015.921.126.531.837.242.410.7
    14017.022.428.133.639.144.77.5

    GUOMAT Air Spring Advantages


    Compared with spring, air spring shock absorbers have the following advantages:

    • Excellent shock absorption
    • Stable shock absorption
    • Precise height control
    • Wide range of sizes
    • Extend equipment life
    • Effectively reduce noise
    • Air spring shock absorbers are widely used



    The Related Picture of 3B7330


    G3/8 Air Inlet 3 Convoluted Rubber Industrial Air Spring CushionG3/8 Air Inlet 3 Convoluted Rubber Industrial Air Spring Cushion


    Company Profile

    Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
    G3/8 Air Inlet 3 Convoluted Rubber Industrial Air Spring Cushion
