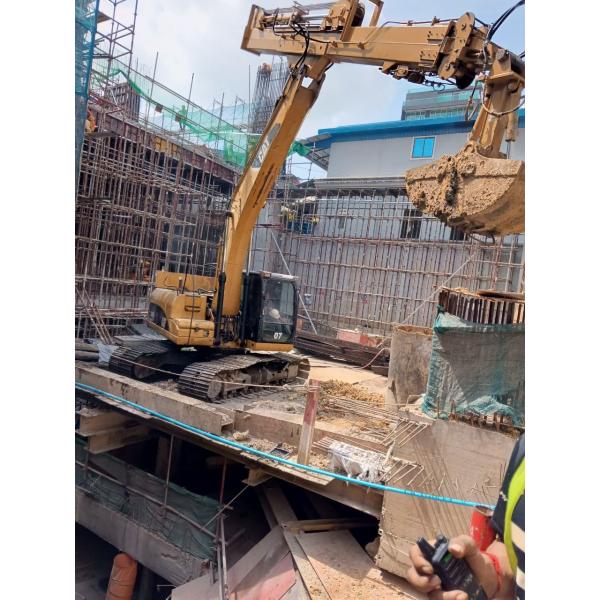

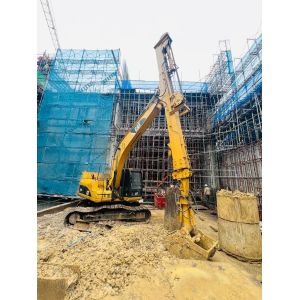

High Precision CAT320 Excavator Three-Stage Telescopic Arm BS900E For Deep Pit Engineering

High Precision CAT320 Excavator Three-Stage Telescopic Arm BS900E For Deep Pit Engineering

✅This excavator telescopic arm weighs only 2t, making it easy to maneuver and operate. It is suitable for different excavator model brands, including the CAT320, making it a versatile and flexible tool for your construction projects.

✅Our Excavator Telescopic Boom is perfect for construction applications. It can easily reach difficult areas and provide maximum efficiency in digging and excavating projects.

✅Our commitment to customer satisfaction doesn't end with the purchase of our products. We provide excellent after-sale support, including technical video support, to ensure that our customers get the most out of their purchase.

✅In summary, the Excavator Telescopic Boom is made from high-quality 700 steel, weighs only 2t, and is suitable for different excavator model brands, including the CAT320. It is perfect for construction applications and comes with technical video support for after-sale assistance. Invest in our excavator telescopic arm and experience maximum efficiency in your construction projects.

The two-stage telescopic boom is generally 6-16 meters, generally match 6-22 tons excavator. It is divided into two designs with and without pipe coiler. On the market with pipe coiler design one is the main supply products.

Zhonghe two-stage telescopic boom sales of more than 100 sets a year.

1. This product is mainly composed of a fixed body, a sliding body and an extendable cylinder.

2. The arm is made of high-strength 700 material.

3. Embedded hydraulic hoses can effectively prevent damage caused by obstacles.

4. It also has a load-extension function, which can work over some obstacles directly.

5. Generally, it carries a bucket to complete deep pit excavation as well as be matched with a clamshell bucket to grab soil, sand, coal. etc.

welcome to contact for more details and models!

We are dedicated to providing you with the best technical support and service for your Excavator Telescopic Boom. Our top priority is to ensure that your product operates safely and effectively.
Our team of experienced engineers and technicians are available to answer any questions you may have, and we offer a wide range of services including installation, maintenance, troubleshooting, and repair. We are committed to providing you with the best possible customer experience.
We also provide ongoing training and support to ensure that your product is up to date with the latest technology and safety standards. We strive to provide the highest level of service to our customers and are dedicated to providing a positive customer experience.

1. Excavator High Reach Demolition Boom Arm

✅Seamless precision steel pipe

✅Centralized lubrication system

✅The boom seat sleeve adopts all in one molding process

✅Hydraulic pipelines section design, convenient for later maintenance

2. Excavator Pile Driving Boom Arm

✅ The angle between boom and horizon can reach 88°

✅The angle between boom and arm can reach 160°

✅Comparing with the same length pile driving arm, ours can pile higher.

3. Excavator Shorten Arm

✅Stop valves prevent oil leakage when replacing breaker by bucket.

✅Multi-layer welding of pipe connectors to reduce the risk of oil leakage

✅Cylinder protective cover is beneficial to preventing the cylinder from being damaged in collision

✅Q355B material, using high-quality accessories, full weld, double plate reinforcement in the stress position, etc.

4. Excavator Sliding Arm

✅Built-in antiwear plastic slider for easy replacement and maintenance

✅The double oil seal design for the telescopic cylinder prolongs its service life

✅The whole plate is cut, not spliced, so as to be more firm and not easy to deform

✅Steel sliders are welded between the skateboards to avoid direct contact wear

6. EXCAVATOR LONG REACH

✅The pipeline we use is international seamless precision pipeline.

✅The bushing on the boom base we use graphite alloy copper sleeve ,and other place we use steel bushing for easy maintenance

✅Chamfering bevel before welding, our muti-layer welding is full and smooth with many year professional experence .

✅Rivers cleaning dregging project

ZHONGHE triple quality control system
The first system is the technical design drawing review mechanism,
The second system is the semi-finished product review mechanism,
(each process has a detection testing for the previous process)
The third system is the finished product testing.
(Before painting, the overall inspection is carried out to check whether the design size matches the welding size, and whether the installation size meets the design requirement.)

To sum up, every single ZHONGHE product has been passed the above three-stage inspection system to ensure that is qualified before shipping.

(Robust structure)
1. The box is made of LG700 high strength material
2. Bearing part with multi-layer reinforced

3. The upgraded auxiliary rope design makes the pipeline smoother while stretching

(Long service life)
1. The reel adopts enlarged spring piece
2. Adopt Strong bucket cylinder

(Avoid oil leakage)
1. The telescopic cylinder adopts double oil seals
2. Bucket cylinder hose was built-in to avoids oil leakage caused by hose vibration

(Easy to maintain)
Lubrication system for sliders help support butter easily.

Usually use 40GP container to load product !

What type of model can directly install a 30 meter telescopic arm
A: In the absence of a nitrogen cylinder, the generally 30-meter telescopic arm can be installed by more than 450 machines, with 2.2 square shell buckets and 1 square grab buckets. If the nitrogen cylinder is added, the machine above 350 (including 350) can also be equipped with 30 meters telescopic arm and 2.2 square shell bucket. Whether it is 350 or 450 machine, the installation of 30 meters of telescopic arm is required to increase the counterweight to stabilize, 350 machine, it is recommended to increase the counterweight of 8 tons, 450 machine is recommended to increase the counterweight of 4 tons.What is a nitrogen cylinder and how does it work

What is a nitrogen cylinder and what is its working principle?
A: The nitrogen cylinder needs to be filled with nitrogen, why choose nitrogen? The first nitrogen is an inert gas, inactive; Second nitrogen, why can you install a longer telescopic arm if you install a nitrogen cylinder? The telescopic arm is relatively heavy, and the downward pressure of the telescopic arm depends on gravity, and the power support of the excavator is not required. The problem occurs when lifting the big arm, the weight of the telescopic arm during load far exceeds the weight of the original arm load, exceeds the ultimate load capacity of the big arm cylinder, and can not lift the big arm, or the phenomenon of slow lifting. In the face of this phenomenon, there are two solutions, the first is to increase the oil cylinder, the second method is to install a nitrogen cylinder. Enlarging the cylinder will not only cause the cylinder to meet the big arm, but also prone to a series of failure problems of high engine water temperature.
The second method is to install a nitrogen cylinder, the downpressure of the telescopic arm is enough, the lifting capacity is not enough, the principle of the nitrogen cylinder is to always give the big arm an upward lifting force, which increases the lifting force, while reducing the load of the engine, and fuel saving
