    Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay

    Ask Lasest Price
    Brand Name : TIAN RUI
    Model Number : TR9108
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
    Supply Ability : 1000000PCS per Month
    Delivery Time : 5-7 work days
    • Product Details
    • Company Profile

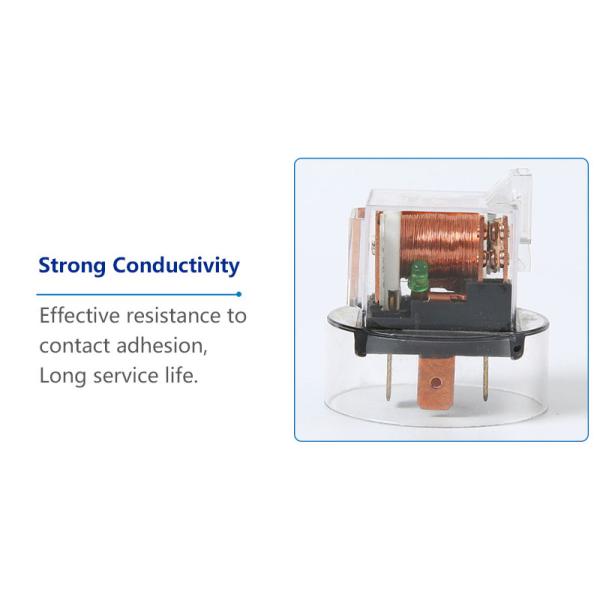

    Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay

    Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay


    Product name: 40A double contact transparent housing relay
    Model: TR9108
    Contact material: AgSnO2
    Contact form: 1Z/1H
    Contact load: 40A/12VDC



    Contact Data
    Contact Form1Z/1H
    Contact MaterialAgSnO2
    Contact RatingsNO/NC : 40A/30A 14VDC
    Max Switching Voltage30VDC
    Max Switching Current40A
    Max Switching Power560W
    Contact Resistance100MΩ
    Electrical Life1x105
    Mechanical Life1x107

    General Data
    Insulation Resistance100MΩ Min.(500VDC)
    Dielectric StrengthBetween coil and contactsAC 500V, 50/60Hz 1Min
    Between open contactsAC 500V, 50/60Hz 1Min
    Operate TimeMax 10ms
    Release TimeMax 5ms
    Temperature Range-40℃ to +85℃
    Shock ResistanceFunctional98m/s2
    Destructive980m/s2
    Vibration Resistance10- 50Hz Double amplitude 1.5mm
    Weight41g
    Lead TypeQuick Connect

    Coil Data 23℃
    Nominal Voltage (VDC)Rated Current(mA)±10% (Ω)Coil Resistance ±10%(Ω)Operate Voltage(Max.)Release Voltage(Min.)Max.Permissible VoltageCoil Power
    121508070% of rated voltage10% of rated voltage150% of Rated voltage1.8
    2475.00320
