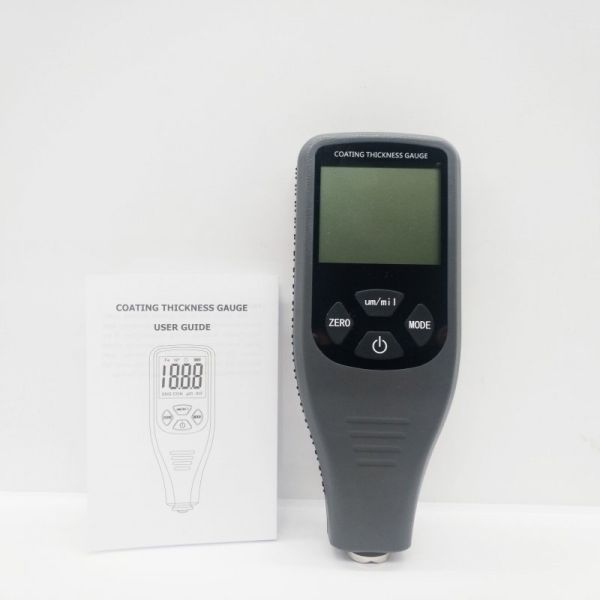

    TG1956 FSTN LCD Display Integral Probe F NF Coating Thickness Gauge

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : TG1956
    Certification : CE
    Price : USD69-USD78/SET
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10 Sets/Month
    Delivery Time : 7-10 working days after receipt of your payment
    • Product Details
    • Company Profile

    TG1956 FSTN LCD Display Integral Probe F NF Coating Thickness Gauge

    TG1956 FSTN LCD Display Integral Probe F&NF Coating Thickness Gauge


    Features:
    FSTN LCD Display

    Built-in Black Light

    Integral Probe F&NF, Auto detecting attribute of substrates

    Nice shell design for easy reading

    Built-in Silicone Slip Strip

    Measurement Range: 0~1300um

    Accuracy: ±(2.5%+1um)

    Resolution: 0.1um

    Zero Calibration and 50/100/250/500/1000um Calibration Points

    5 minutes auto power off to saving power

    Power Supply: 4 x AAA batteries

    Operating Temperature: 0 to 40℃ (32 to 104℉)

    Size: 155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)

    Weight: 125g (4.41 oz)


    Technical specifications

    Probe FProbe N
    PrincipleMagnetic InductionEddy Current
    Range

    0~1300um

    0~51.2mil

    0~1300um

    0~51.2mil

    Accuracy

    ±(2.5%+1um)

    ±(2.5%+0.04mil)

    ±(2.5%+1um)

    ±(2.5%+0.04mil)

    Resolution0.1um/0.01mil0.1um/0.01mil
    CalibrationPoints: ZERO/50/100/250/500/1000um
    Unitsum, mil
    minimum curvature radius convex: 1.5mm
    minimum curvature radius concave: 25mm
    minimum measuring area: Diameter 6mm
    minimum thickness of substrate0.5mm(0.02”)0.3mm(0.012”)
    Power4 x AAA batteries
    Operation EnvironmentTemperature:0~40℃(32~104℉) Humidity:20%~90%RH
    Size

    155mm x 62mm x 35mm

    (6.10” x 2.44” x 1.38”)

    Weight125g(4.41oz)
