    Contitech FD330-22364 Goodyear 2B12-313 Air Suspension Spring For Truck Steel 63640

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 3B7808
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Contitech FD330-22364 Goodyear 2B12-313 Air Suspension Spring For Truck Steel 63640

    Contitech FD330-22364 Goodyear 2B12-313 Air Suspension For Truck Steel 63640



    Product Information


    Suspension Air Springs are air shocks designed to provide superior quality, durability and load capacity for a range of automotive applications. Made with high-grade rubber and steel, they are engineered to provide superior performance in temperatures ranging from -40℃ to +70℃. With their superior load capacity and durability, these air shocks are ideal for vehicles of all sizes, shapes and types. They are designed to provide superior shock absorption and stability, resulting in a smoother and safer ride. In addition, they are easy to install and require minimal maintenance, making them a great choice for any vehicle.


    About Product Technical Data


    Top Cover Plate Diameter289mm
    Bottom Cover Diameter289mm
    Screw Center Distance of Top Cover Plate158.8mm
    Screw Center Distance of Bottom Cover Plate158.8mm
    Top Cover Plate Screw(Nut) Tooth4X3/8-16UNC
    Bottom Cover Plate Screw(Nut) Tooth4X3/8-16UNC
    Gas Hole/Air inlet1/4NPT
    Rubber Bellow Diameter356mm
    The working Stroke282mm


    Refer Number

    Airspring Supplier:Fire-stone

    Competitor/Supplier Number:W01-358-7808/313

    Airspring Supplier:Contitech

    Competitor/Supplier Number:FD 330-22 364

    Airspring Supplier:Goodyear

    Reference:578933350

    Competitor/Supplier Number:2B12-313/459

    Airspring Supplier:Triangle

    Reference:6319

    Competitor/Supplier Number:4336

    Airspring Supplier:Airkraft

    Reference:115061

    Competitor/Supplier Number:3B-356

    Airspring Supplier:Brake & Wheel

    Competitor/Supplier Number:M3533

    Airspring Supplier:EI Ride

    Competitor/Supplier Number:8030170

    Airspring Supplier:Dayton

    Competitor/Supplier Number:3547808

    Airspring Supplier:Leland

    Competitor/Supplier Number:Sc2031

    Airspring Supplier:Navistar

    Competitor/Supplier Number:554801C1

    Airspring Supplier:Hendrickson

    Competitor/Supplier Number:S13157

    Airspring Supplier:Ridewell

    Competitor/Supplier Number:1003587808C

    Airspring Supplier:SAF Holland

    Competitor/Supplier Number:57007808

    Airspring Supplier:Truck stell

    Competitor/Supplier Number:63640

    Airspring Supplier:Peerless

    Competitor/Supplier Number:55000030


    GUOMAT Air Spring Features


    1. Low installation height
    In comparison to conventional pneumatic cylinders, GUOMAT air actuators contain no piston rod, making it possible to reduce
    the design height considerably.This allows compact constructions to be made.


    2. Angular movement
    Depending on the type, GUOMAT air actuators can be used for tilt angles up to 30°. This enables the designer to simplify the articulated construction.


    3. Low purchase price
    The purchasing costs are considerably less than for conventional pneumatic cylinders.And thanks to the long service life and freedom from maintenance,running costs are reduced as well.

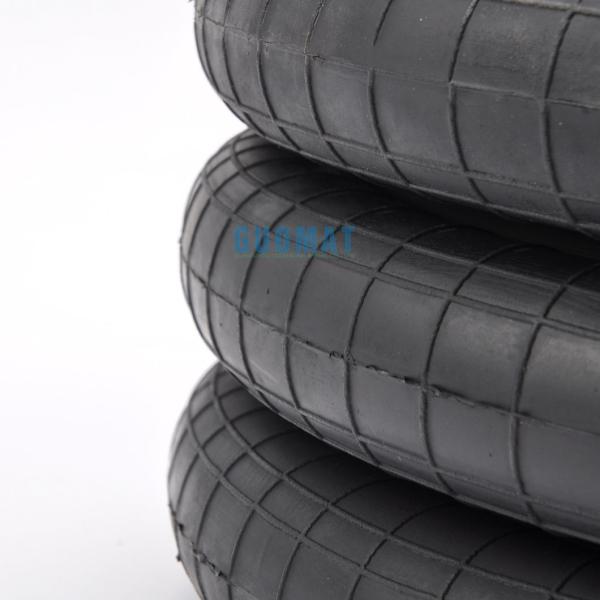

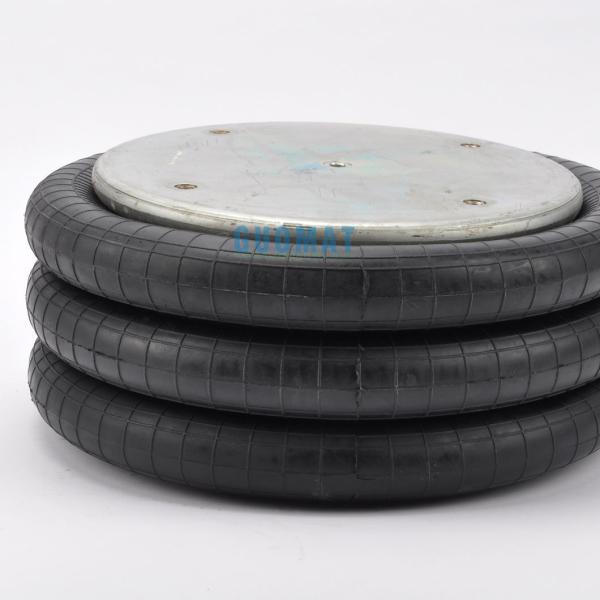

    Product Picture

    Contitech Fd330-22364 Air Spring/Goodyear 2b12-313 Suspension Spring for Truck steel 63640 Contitech Fd330-22364 Air Spring/Goodyear 2b12-313 Suspension Spring for Truck steel 63640 Contitech Fd330-22364 Air Spring/Goodyear 2b12-313 Suspension Spring for Truck steel 63640 Contitech Fd330-22364 Air Spring/Goodyear 2b12-313 Suspension Spring for Truck steel 63640 Contitech Fd330-22364 Air Spring/Goodyear 2b12-313 Suspension Spring for Truck steel 63640 Contitech Fd330-22364 Air Spring/Goodyear 2b12-313 Suspension Spring for Truck steel 63640 Contitech Fd330-22364 Air Spring/Goodyear 2b12-313 Suspension Spring for Truck steel 63640
