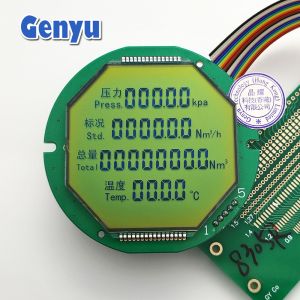

2.36 Inch Segment LCD Display Round STN LCD Display No Backlight

What is STN LCD?

STN LCDs are a variation of TN (Twisted Nematic) LCDs, where the liquid crystals are twisted at a larger angle (typically around 180°). This results in better contrast, wider viewing angles, and improved optical performance compared to traditional TN displays.

The "super" in STN refers to the degree of twist in the liquid crystal molecules, which enhances the optical properties, such as contrast and color reproduction.

How STN LCDs Work:

• STN LCDs use the same basic principle as TN displays, where the liquid crystals twist in response to an applied voltage. However, in STN displays, the crystals are twisted at a larger angle (typically between 140° and 180°). This improves the clarity of the display by reducing light scatter and improving contrast.
• The display typically uses polarizers at the front and back to control the light passing through the liquid crystal layers.

In transmissive mode, the LCD panel is backlit, while in reflective mode, it relies on ambient light to make the display visible.

Detailed Parameters:

Applications of STN LCDs:

1. Consumer Electronics:

   • Watches, clocks, and other small appliances that require a clear, low-power display.
   • MP3 players, portable devices, and other small gadgets often use STN displays for enhanced readability.

2. Industrial Applications:

   • Thermometers, voltmeters, and measuring instruments often use STN displays for clear and simple readouts in a variety of lighting conditions.

3. Home Appliances:

   • STN displays are common in microwave ovens, refrigerators, and air conditioning units for displaying numerical and alphanumeric information.

4. Automotive Displays:

   • Car dashboards, instrument clusters, and infotainment systems often use STN LCDs for displaying readouts and simple graphics.

5. Point-of-Sale Systems:

   • Cash registers and barcode scanners may incorporate STN LCDs to display prices, customer information, and more.
