    SPGW 90 Shore High Pressure Piston Seals Double Acting Piston Seal For Hydraulic Cylinder

    Ask Lasest Price
    Brand Name : YOUCHANG/ZHIPAN
    Model Number : SPGW
    Certification : UDEM
    Price : Negotiable price
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100000 pcs per week
    Delivery Time : 2-3 work days
    • Product Details
    • Company Profile

    SPGW 90 Shore High Pressure Piston Seals Double Acting Piston Seal For Hydraulic Cylinder

    High Pressure Piston Seals SPGW Double Action Seal SPGW for Hydraulic Cylinder


    Description

    SPGW heavy-duty piston seals are designed for double-acting hydraulic cylinders used in heavy-duty applications. They consist of a PTFE ring, 2 nylon support rings and an NBR pressure ring and have the advantages of simple design, high line speed values, non-adhesive surfaces under long-term static conditions, low friction, wider allowable gaps and long service life. Therefore, SPGW is ideal for heavy-duty applications.

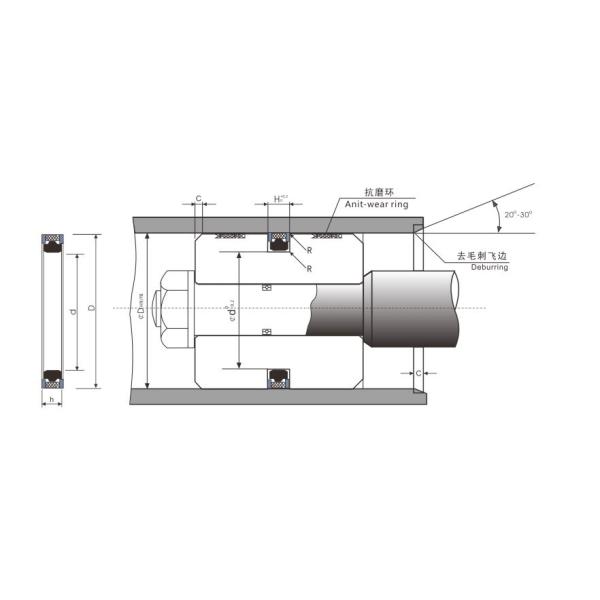

    Product Display


    Technical data

    Pressure: 50-300 Mpa
    Temperature: With NBR square ring: -30°c to +100°c
    Speed: <1.5m/s
    Medium: Hydraulic oil (mineral oil base)
    Material: Profile Seal: PTFE, Bronze / Support Ring: NYLON / Pressure Ring: NBR


    advantages

    High sliding speed

    Low friction, no stick-slip phenomenon

    Simple groove design

    Increase the gap possible


    Dimensions

    DescriptionsSize
    SPGW50*36*8.5
    SPGW55*41*8.5
    SPGW60*46*8.5
    SPGW65*50*10.5
    SPGW70*55*10.5
    SPGW75*60*10.5
    SPGW80*65*10.5
    SPGW85*70*10.5
    SPGW90*75*10.5
    SPGW95*80*10.5
    SPGW100*85*12
    SPGW105*90*12
    SPGW110*95*12
    SPGW115*100*12
    SPGW120*105*12
    SPGW125*102*15
    SPGW130*107*15
    SPGW135*112*15
    SPGW140*117*15
    SPGW145*122*15
    SPGW150*127*15
    SPGW155*132*15
    SPGW160*137*15
    SPGW165*142*15
    SPGW170*147*15
    SPGW180*157*15
    SPGW190*167*15
    SPGW200*177*15
    SPGW210*187*15
    SPGW220*197*15
    SPGW225*202*15
    SPGW230*207*15.5
    SPGW240*217*15.5
    SPGW250*222*17
    If need more size ,please contact to us
