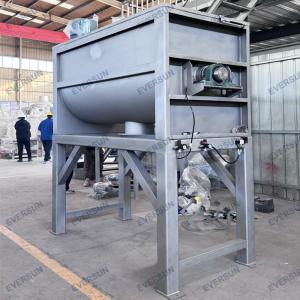

The horizontal screw mixer consists of a U-shaped container, screw
stirring blades, and
transmission components. The U-shaped long cylindrical structure
ensures that the
materials (powders, semi-liquids) move with low resistance within
the cylinder. The positive
and negative rotating screws are installed on the same horizontal
shaft, a low-power and
high-efficiency mixing environment. The screw blades are usually
made in two or three
layers. The outer layer of the screw pushes the material from sides
to the center, while the
inner layer of the screw pushes the material from the center to
both sides, which can create
more eddies in the flowing. This speeds up the mixing speed and
improves the uniformity of
the mix.
Under the action of the spiral ribbon on the agitator shaft, the
inner and outer spiral
ribbons turn over the material in a large, the inner spiral ribbon
moves the material to both
sides, the outer spiral ribbon moves the material from both sides
to the inside, so that the
material is mixed and forth. In addition, some of the material is
pushed by the spiral ribbon
to move axially and radially, thus forming a convective cycle. The
material quickly and
evenly mixed in a short period of time.
1. Flexible disassembly: The main shaft of the screw needs to be
connected to the flange of
the drive shaft When maintaining or repairing the horizontal screw
mixer, or when changing
the type of stirring shaft, the entire disassembly is very quick.
Because the design of the dis
is very convenient, the U-shaped cylinder and the two end plates
can be completely welded,
avoiding the accumulation of materials due to the large size of the
cylinder and existence of
gaps when connected to the flange. This also better reduces the
possibility of residues.
2. Convenient cylinder cover design: The overall design of the
cylinder is more flexible,
meeting the requirements of half-open, fully open, and completely
closed. The fully open
design is more suitable for occasions with higher cleanliness
requirements. cylinder cover
door is supported by gas springs, providing higher safety.
3. Driving advantage: All products are selected according to
standard requirements. The
driving method uses a-connected gear reducer. Although this design
has a large torque, it has
good reliability and very low noise. For larger mixers, a belt
transmission design is added In
case of accidents, the transmission components can be effectively
protected.
4. Stable mixing process: A stable mixing process reduces damage to
fragile materials, and
the addition a flying knife structure also serves a crushing
function.
5. Not affected by particle size: Under feasible factors, the
mixing effect of the horizontal screw
mixer is not by the size or density of the particles. It also has a
good mixing effect on viscous
materials.
| Model | Volume(L) | Motor power (kw) | Spindle speed(r/min) | Primary mixing (kg) M ³ | L*W*H(mm) | Weight (kg) |
| WLDH-0.3 | 300 | 3 | 41 | 240 | 2300*680*1060 | 750 |
| WLDH-0.5 | 500 | 5.5 | 41 | 400 | 2900*780*1240 | 1000 |
| WLDH-1 | 1000 | 11 | 33 | 800 | 3200*1000*1400 | 1800 |
| WLDH-2 | 2000 | 15 | 33 | 1600 | 3860*1200*1650 | 2200 |
| WLDH-3 | 3000 | 18.5 | 33 | 2400 | 4320*1300*1900 | 3200 |
| WLDH-4 | 4000 | 22 | 28 | 3200 | 4600*1400*2000 | 4000 |
| WLDH-5 | 5000 | 37 | 28 | 4000 | 4850*1500*2020 | 4650 |
| WLDH-6 | 6000 | 37 | 22 | 4800 | 5400*1560*2200 | 6280 |
| WLDH-8 | 8000 | 45 | 22 | 6400 | 5100*1720*2420 | 8500 |
| WLDH-10 | 10000 | 55 | 19 | 8000 | 5610*1750*2360 | 9300 |
| WLDH-15 | 15000 | 90 | 17 | 12000 | 5820*2000*3160 | 11000 |
| WLDH-20 | 20000 | 110 | 11 | 16000 | 6060*2630*3160 | 13500 |
Mixing with a screw ribbon mixer not only takes a short time but
also has good mixing
results, and it is a highly practical mixing device. is usually
used for mixing powders with
powders or powders with liquids, so it is widely used in the
pharmaceutical, food, pesticide,
dye, chemical and plastic industries.
