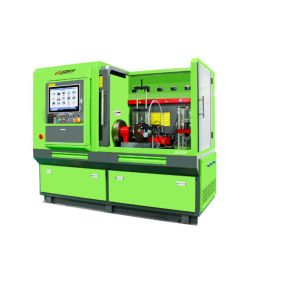

    JZ-919 Diesel Common Rail High Pressure 4-Pin Smart HEUI EUI EUP Injector and 320D Pump Diagnostic Test Bench

    Ask Lasest Price
    Brand Name : JZHY
    Model Number : JZ-919
    Certification : CE / ISO
    Payment Terms : T/T,L/C,Western Union
    Supply Ability : 100sets per Month
    Delivery Time : 7-10 Days
    • Product Details
    • Company Profile

    JZ-919 Diesel Common Rail High Pressure 4-Pin Smart HEUI EUI EUP Injector and 320D Pump Diagnostic Test Bench

    JZ-919 Diesel Common Rail High Pressure 4-Pin Smart HEUI EUI EUP Injector and 320D Pump Diagnostic Test Bench


    • Test actuator pump
    • Test piezo injector
    • Test solenoid valve injector
    • Test HEUI common rail injector
    • Test pump nozzle & unit pump
    • Test high-pressure common rail pump
    • 320D pump
    • GDi injector

    Assist Functions:


    • Test resistance & inductance
    • Flow sensor linear calibration
    • Oil nozzle opening pressure flow
    • Fuel tank oil level lower limit alarm
    • High pressure filter clogging reminder
    • Electronic measuring system

    Optional Functions:


    • Test 4-pin injector
    • Testing X15, Q60 HPI
    • 9.3 HP5 HP6 HP7 pump
    • Testing HPI actuators
    • 4-plunger common rail pump
    • 4-plunger common rail pump

    Hardware Configuration:


    • Gear flow sensor
    • Dual DRV configuration
    • 4 flow sensors
    • Common rail pipe with filter function
    • Injection drive and system voltage monitor

    Generate Correction Code:


    • Generate 6,7,8,9,10-digit IQA code
    • Generate 16,24,30-digit QR code
    • Generate C2i,C3i correction code
    • Generate piezo IMA,ISA code
    • Generate VDO-IIC code
    • Generate correction code
    Technical Parameters
    Model NumberJZ-919
    ColorGreen
    Frequency50Hz / 60Hz
    Motor Height125 MM
    Main Output22 KW
    Speed0~4000 RPM
    Speed Control ModeFrequency Converter
    Diesel Motor Output5.5 KW
    Engine Motor Output4 KW
    Diesel Oil Supply Output0.75 KW
    Engine Oil Supply Output0.55 KW
    Oil Tank Cooling Output105 Watts
    Power380V AC 3-Phase-4-Wire
    Cooling SystermAir Conditioning (1.5 P)
    Diesel Tank Volume40L Filtration Accuracy:3μm
    Engine Oil Tank Volume20L Filtration Accuracy:5μm
    Fuel Temperature40℃ ± 2℃
    Heating SystemAir Conditioning
    Nozzel / Pump Flow SensorGear Flow Sensor
    Flow Metering Unit0.008~2L /min
    Control Return VoltageDC 12V / DC 24V
    Max Common Rail Pressure2700 Bar
    Rail Pressure Testing Accuracy±5 Bar
    Max Medium Common Rail Pressure250 Bar
    Diesel Oil Supply Pressure0~2.5 Mpa
    Oil Supply Pressure0~2.5 Mpa
    Injection Frequency400-6000 n/M
    Pulse Width100-3000 μs
    Machine Dimension2310*1400*1830MM
    Packing Dimension2510*1600*2030MM
    Net Weight1200 KG
    Gross Weight1440 KG
