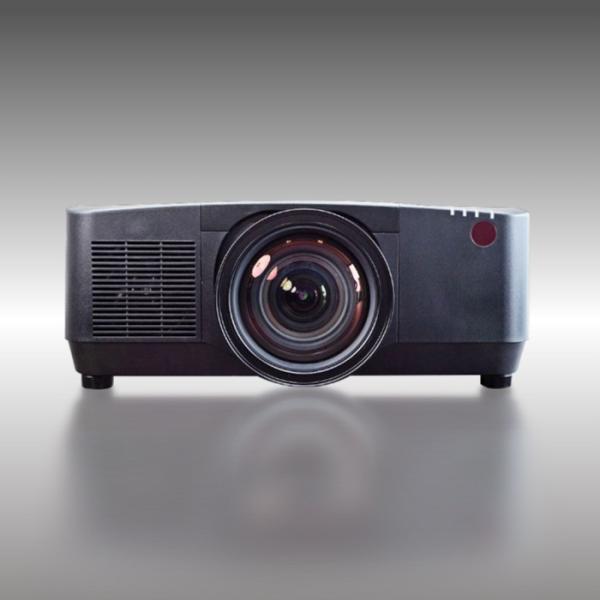

SMX MX-X20000U Large Venue Outdoor 20000 Lumen WUXGA LCD Projector
The SMX MX-X20000U engineering projector uses a new laser light source and a large
1.0'' 3LCD display panel. Not only does it have a center brightness
of up to 20,000 lumens, its color and picture performance are also
excellent, covering most indoor and outdoor application scenarios. MX-X20000U adopts the new generation of dynamic contrast technology to achieve
an ultra-high contrast ratio of 3000000:1. The stable and
long-lasting high brightness output and excellent color
reproduction enable it to present clear and full images without
pressure in various indoor and outdoor projects.
Key Features:
- 20000 Lumen high brightness
- 3,000,000:1 High contrast
- Up to 30,000 hours laser light source
- Versatile installation
- Optional lenses(see the last table)
- Designed for heavy-duty use
- Edge blending
Native Resolution WUXGA(1920*1200)
WUXGA resolution provides higher definition than 1080p and is
suitable for displaying detail-rich content such as graphics, data
and video.
Lens Shift Function
The maximum lens shift range of ±65% vertically and ±25%
horizontally provides greater room for picture adjustment. By
adjusting the image position, you can ensure that your audience
gets the best viewing experience from every angle, especially in
large venues. Lens shift can reduce the need to hang or move the
projector, saving installation costs and time.
High Contrast Ratio
SMX projector high contrast can make details in the image more
obvious, especially in shadows and highlights, enhancing the depth
and layering of the image. When watching dynamic content, smx
projector high contrast can provide a smoother and more immersive
experience, making it easier for viewers to immerse themselves in
the content.
Edge Blending Function
The SMX MX-X20000U built-in edge blending function significantly improves the
efficiency and effectiveness of multi-projector applications by
providing a seamless visual experience and flexible configuration
options, making it suitable for a variety of professional and
commercial environments.
Ultra Long Laser Light Lifespan
The brightness of the light source will gradually decrease with the
increase of usage time. The actual service life of the laser light
source varies depending on factors such as usage mode,
environmental conditions, and user habits. With a lifespan of
20,000 hours , assuming 4 hours of use per day the light source can
be used for around 13 years.
Powerful Keystone Correction
It has built-in various types of geometric correction functions,
which are very practical in practical applications. When projecting
onto irregular objects, it can correct the corners of the picture
in real time, which ensures that it can obtain a square,
high-quality image in different scenes.
Specification
| Model | MX-X20000U |
| Brightness |
| | Brightness(Lumen) | 20,000 |
| Overall Spec |
| Panel | Display Panel | 3x1.0" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Laser Lifetime | Normal mode | 20000hrs |
| ECO mode | 30000hrs |
Projection Lens
(STD) | Len Model | MX-EG12ZLM |
| Zoom/Focus | Motorized |
| Throw Ratio (16:10) | 1.24-2.01 @100inch |
| F | 1.8-2.24 |
| f | 27.7-44.3mm |
| Zoom Ratio | 1.62 |
| Screen size | 60-500 inch |
| Lens Shift V | ±65% |
| Lens Shift H | ±25% |
| CR | Contrast Ratio(Min) | 3,000,000:1 |
| Noise | Noise(dB) | Full:46db / Normal:44db / Eco1:43db / Eco2:42db |
| Uniformity | Uniformity | TYP:90% |
| AR | Aspect Ratio | Native:16:10
Compatible: 4:3/16:9/normal/16:6 |
| Terminal(I/O port) |
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 |
| USB-A | *1 |
| USB-B | *1 (Display) |
| RJ45 | *1 (Display) |
| DVI-D | *1 |
| HD BaseT | *1 |
| Audio in(mini jack,3.5mm) | *1 (VGA/DVI-D share) |
| DMX512 | *1 |
| Output | HDMI 1.4(OUT) | *1 |
| Audio out (mini-jack,3.5mm) | *1 |
| Control | RS232C (Input) | *1 |
| RS232C (Output) | *1 |
| Wired Remote(IN) | *1 |
| Wired Remote(OUT) | *1 |
| Other Functions |
| Keystone | Keystone Correction | V: ±30°
H:±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid ImageTune correction |
| OSD | Languages | 26 languages:
English, German, French, Italian, Spanish, Polish, Swedish, Dutch,
Portuguese, Japanese, Simplified Chinese, Traditional Chinese,
Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish,
Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes |
| LAN Control-PJ Link | Yes |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Others | 360° projection | 360° Install |
| Edge Blending | Yes |
| Adjustable brightness | Yes |
| Dimension&Weight |
| | Product Size (WxHxD mm) | 599X240.2X493.8mm (not including lens) |
| Net. Weight (KG) | 28.9Kg (not including lens) |
| Accessory |
| | Manual Languages | Chinese, English |
| Standard Accessories | Power cord (3m, Black), Remote control |
