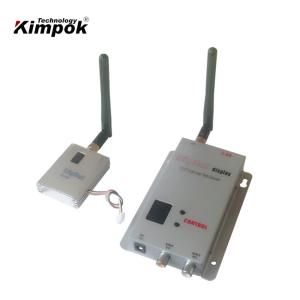

2.4Ghz 8km FPV/ UAV Wireless Video Transmitter 400mW Real-time
Analog AV Transmitter and Receiver 12 Channels
Kimpok is specialized in COFDM, TDD and Analog wireless video transmission
products for over 10 years, including Wireless Video Transmitter,
HD Video Wireless Transmitter and Receiver, quality UAV/UGV
Wireless Video Transmitter, and CCTV Wireless Sender, products are
applied widely among Public Security Bureaus, Forest Fire
Prevention Departments, Maritime Bureaus, Oil Field, Construction
Sites, Tunnels, UAV, UGV, Automobiles and so on.
Product Description
KP-B400 wireless video transmission equipment is an excellent all
aspects of performance are more varieties, and its large power
margin, more suitable for complex physical environment. The use of
0dB (Original small antenna) in full to the antenna, the open area
to ensure the transmission 400-800m or so. And transmitter
technology is superb and the special metal is more conducive to
heat, more suitable for long hours of work. Signal input with
common AV interface, it can easily work with camera, VCD, DVD and
all other conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver
for CCTV security projects but also used in the line of FPV system,
UAV, RC airplanes/helicopters, Video and audio signals at the same
time in cars of Unmanned Equipment.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for
long distance wireless transmit projects and special project.
Specification:
| Voltage | DC 12V |
| Frequency | 2.2G/2.3G/2.4G |
| Number of channels | 12 Channels |
| Transmit Power | 400mW |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance (Open environment) | 400m-800m; 8~10km from air to ground |
| Overall Configuration | Transmitter, receiver, video cable, antenna |
| Temperature | -10℃ ~ +50℃ |
| Transmitter Weight | 62g |
| Receiver Weight | 120g |
| Dimensions (L * W * H) | Transmitter: 53*41*14mm. Receiver:116*80*21mm |
Our Services
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a
year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an
experienced manufacturer in wireless microwave transmission area
since 1998.
6. Whatever your wireless surveillance application or budget, we
can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
