Product Description
Customization Magnetic or Non-magnetic Inox Cable Various
Construction AISI316 AISI304 Stainless Steel Wire Rope China
Supplier
- Place of Origin:China
- Brand Name:CHONGHONG

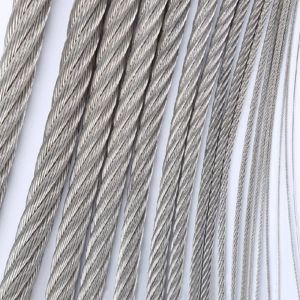

- Product Name:Stainless Wire Rope
- Production can be based on: DIN
- Specifications:
1) 6 x 7 + FC (IWS), 0.5mm to 8mm
2) 6 x 19 + FC (IWS), 1.5mm to 30mm
3) 6 x 37 + FC (IWS), 5mm to 32mm
4) 1 x 7, 0.27mm to 1.5mm
5) 1 x 19, 0.8mm to 20mm
6) 1X37 3mm to 22mm
- Customization Diameter
- Also Available in 6 x 6, 6 x 7 +IWRC, 7 x 7, 6 x 9W + FC, 6 x 9W +
IWRC, , 6 x 19 +IWRC, 7 x 19, 6 x 19S + FC, 6 x 19S + IWR, 6 x 19W
+ FC, 6 x 19W +IWR, 6 x 25Fi + FC, 6 x 25Fi + IWRC, 6 x 26WS + FC,
6 x 26WS +IWRC, 6 x 29Fi + FC, 6 x 29Fi + IWRC,6 x 31WS + FC, 6 x
31WS +IWRC, 6 x 36WS + FC, 6 x 36WS + IWRC, 6 x 37S + FC, 6 x 37S +
IWR,6 x 41WS + FC, 6 x 41WS + IWRC, 6 x 49SWS + FC, 6 x 49SWS +
IWRC, 6x 55SWS + FC, 6 x 55SWS + IWRC, 6 x 37 + FC, 6 x 37 + IWRC,
6 x 61+ FC, 6 x 61 + IWRC, 8 x 19S + FC, 8 x 19S + IWRC, 8 x 19W +
FC, 8x 19W + IWRC, 8 x 25Fi + FC, 8 x 25Fi + IWRC, 8 x 26WS + FC, 8
x26WS + IWRC, 8 x 31WS + FC, 8 x 31WS + IWRC, 8 x 36WS + FC, 8
x36WS + IWRC, 8 x 41WS + FC, 8 x 41WS + IWRC, 8 x 49SWS + FC, 8
x49SWS + IWRC, 8 x 55SWS + FC, 8 x 55SWS + IWRC, 17 x 7 + FC, 17 x
7+ IWS, 18 x 7 + FC, 118 x 7 + IWS, 18 x 19W + FC, 18 x 19W +
IWS,18 x 19S + FC, 18 x 19S + IWS, 18 x 19 + FC, 18 x 19 + IWS, 34
x 7+ FC, 34 x 7 + IWS, 36 x 7 + FC, 36 x 7 + IWS, 35W x 7, 24W x 7,
6x 12 + 7FC, 6 x 24 + 7FC, 6 x 24S + 7FC, 6 x 24W + 7FC, 6 x 15
+7FC, 4 x 19S + FC, 4 x 25Fi + FC, 4 x 26WS + FC, 4 x 31WS + FC, 4
x36WS + FC and 4 x 41WS + FC etc.
- Material: Stainless steel 304/316
- Length : 500m/reel,1000m/reel or as per customer's requirements
- Surface treatment:Polished
- Non-magnetic, PVC, nylon or TPE coated are also available
- Lay : Right hand regular lay or left hand regular lay
- Feature:Good corrosion, heat and cold resistance

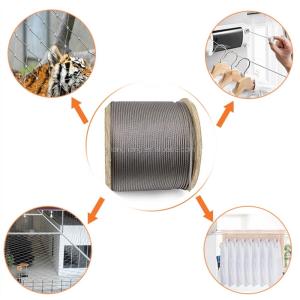

- Application:Crane, Bridge, Railway,Track etc.
- Packaging:Wrapped in plastic reel or wooden reel, then put on
pallets or in wooden box or as per customer's requirements.
1. Stainless steel wire rope
These are normally made of AISI 302/304 or AISI 316. AISI 302/304
offers higher breaking strength. AISI 316 offers better
electrolytic corrosion resistance which makes it more suitable for
marine applications.
2. The grade of the wire is the minimum breaking strength.
The most common grades used are: 1470 N/mm². 1570N/mm² .1770
N/mm².Other grades are used for some special applications.
3. The core:
Fiber Core (F.C.), usually polypropylene (P.C.), sometimes (H.C.) and sisal.
Independent Wire Rope Core (IWRC)
Wire Strand Core (WSC)
IWRC and WSC are sometimes referred to as steel wire core or steel
center.
4. Construction:
Expressed in numbers of strands x number of wires.
for example: 6 x 25 indicates that the wire rope consists of 6
strands, which in turn have 25 individual wires.
5. Lay:
Right Regular Lay (RRL) ;Right Lang Lay (RLL) ;Left Regular Lay
(LRL) ;Left Lang Lay (LLL)
6. Construction and Application
- 6×7+FC,6X7+IWRC, 6×19+FC,6X19+WIRC, 6×37+FC, 6X37+IWRC for cable
car, cableway towing, slope hoisting, ship, ing, lifting, towing
etc.
- 6×12+7FC,6×15+7FC,6×24+7FC for tow boat, goods net, floating
transportation of wood and lashing etc.
- 6×19S+FC,6×19S+IWR, 6×19W+FC,6×19W+IWR, 6×5Fi+FC,6×25Fi+IWR,
6×9Fi+FC,6×29Fi+IWR, 6×26SW+FC,6×26SW+IWR, 6×31SW+FC, 6×31S+IWR,
6×36SW+FC,6×36S+IWRC for various equipment for hoisting, ing,
lifting, towing, port load and unload, blast furnace hoisting and
oil well drilling. The rope with wire core can be used under the
shock load, heated and squeezed conditions.
- 18×7+FC,18×7+IWS, 18×19+FC,18×19+IWS 18×19+FC,18×19+IWS 4V×39S+5FC
which are suitable for vertical well drilling hoisting, cage
channel of vertical well drilling, port load and unload ,and tower
crane.
- 6×3×7, 7×7×7, 7×7×19 for cable of chain lock and flexible occasion.
- Wire Rope For Elevator 6×19S+NF, 8×19S+NF,6X19S+IWRC,8X19S+WIRC
- Galvanized Aircraft Cable 1×7, 1×19, 6×+FC
,6×7+IWS,6×19+FC,6×19+IWS for aircraft purpose.
Standard: GB/T8918-1996, GB 1102-74, SC 1443-86, ISO, BS, DIN, JIS, API and
RRW-410D and Other.
We can supply steel wire ropes of many specifications with various
surface to meet customers' needs.
Company Information
Chonghong Industries Ltd. is a private enterprise,we are
professional manufacturer of steel wire rope for 15years.
We mainly supply and manufacture galvanized aviation-use steel
ropes with various structures and specifications, brake wires for
cars, motorcycles and bicycles, stainless steel ropes, non rotating
steel ropes, elevator wire ropes, and wire ropes for special uses.
Our current annual output is 4,000 tons of galvanized steel ropes.
Backed by comprehensive production equipment, advanced testing
instruments, and experienced staff, we guarantee reliable product
quality. Today, our customers are in more than 60 countries in the
European Union, North America, South and Central America, the
Middle East and Southeast Asia.
FAQ
In ordering steel wire rope, you are requested to give us complete
information as specified below:
a. Purpose: For which rope will be used.
b. Size: Diameter of the rope in millimeter or inches
c. Construction: Number of strands, number of wires per strand and
type of strand construction.
d. Type of Core: Fiber core( FC), independent wire rope core(IWRC)
or independent wire strand core(IWSC).
e. Lay: Right regular lay, left regular lay, right lang lay, left
lang lay.
f. Coating: Bright(ungalvanized), galvanized or stainless, PVC or
Grease.
g. Grade of wire: Tensile strength of wires.
h. Breaking Load: Minimum or calculated breaking load in tones or
pounds.
i. Lubrication: Whether lubrication is desired or not, and required
lubricant.
j. Length: Length of wire rope.
k. Packing: In coils wrapped with oil paper and hessian(orp.p)
cloth, or on wooden reels.
l. Quantity: By number of coils or reels, by length or weight.
m. Remarks: Shipping marks and any other special requirement.
