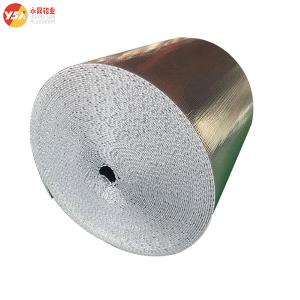

    Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials

    Ask Lasest Price
    Brand Name : Henan Yongsheng
    Model Number : Aluminium Bubble Foil Insulation
    Certification : ISO, RoHS
    Price : FOB, CIF, CFR, CNF, etc.
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 7-25 days after order confirmation
    • Product Details
    • Company Profile

    Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials


    Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials


    Product Introduction

    Air cell insulation is a special form of reflective aluminum bubble foil that has become the preferred choice for applications that require superior heat resistance and sound insulation.
    Air cell insulation consists of multiple layers of air bubbles sandwiched between reflective aluminum foil. It works on the principle of radiant heat reflection and thermal resistance.
    The reflective aluminum surface reflects radiant heat back to its source, while the trapped air bubbles act as an insulator, reducing the conduction of heat and sound through the material.
    Temperature range-76F ~+212F (ASTM C411)
    R-value2.0~11.2
    Fire-proofingClass A/Class 1
    Emissivity0.03-0.04 COEF
    Thermal Conductivity0.032 -0.036W/m0
    Apparent Density54.8 kg/m3
    Reflectivity96-97%
    Vapor Transmission0.012 g/m2kpa
    CorrosionDoesn’t generate
    Tensile Strength(MD)13.43 Mpa
    Tensile Strength(TD)14.58 Mpa
    1. The outer layer of reflective aluminum foil is engineered to reflect up to 97% of radiant heat, significantly enhancing the thermal performance of the material.
    2. The inner air bubbles act as a thermal barrier, preventing heat from passing through the material. This layer helps minimize heat loss in the winter and gain in the summer.
    3. The construction of Air Cell insulation makes it lightweight and easy to handle, which reduces installation time. It can be cut and shaped without affecting its insulating properties, making it ideal for areas with complex or irregular surfaces.
    4. Air cell insulation is resistant to moisture, rot and mildew, making it suitable for a variety of environments, including areas of high humidity. It also has a long service life, maintaining its efficiency for long periods of time without noticeable degradation.

    Product Parameter


    Main MaterialAluminum Foil, metal foil, PE Bubble,

    Material Structure

    MPET+Bubble+ +White Pe Film
    Aluminum Foil+Bubble+White Pe Film
    Aluminum Foil+Bubble+White Pe Film
    Colorful Coating+Aluminum Foil+Bubble + White Pe Film
    BubblePe bubble, diameter is 10mm, height can be 3/4/6/8mm, Diameter is 20mm, height will be 7mm
    Normal Insulation Thickness4mm,6mm,7mm,8mm
    Bubble colorregular is clear or white
    Reflectivity97%
    Normal Roll Size1.2m*30m/roll, 1.2*40m/roll, 1.5*20m/roll, also can be customized; max width is 1.5m
    Packing1 roll/pe bag, pe bag can be printed customized

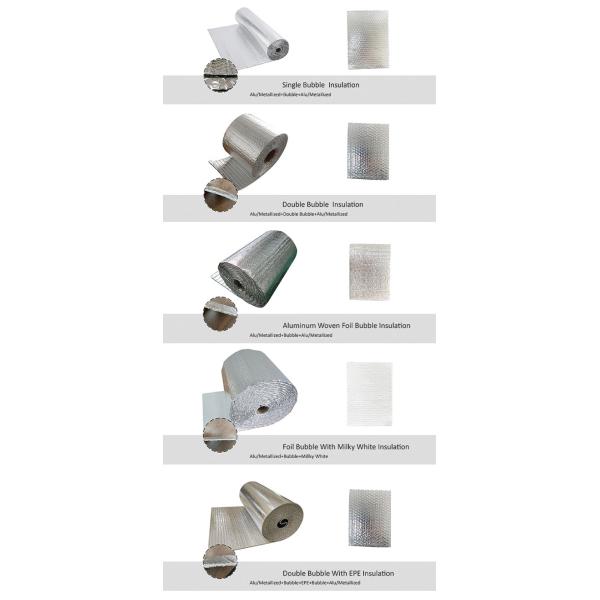

    Product Show


    Product Features
