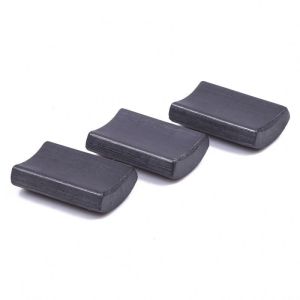

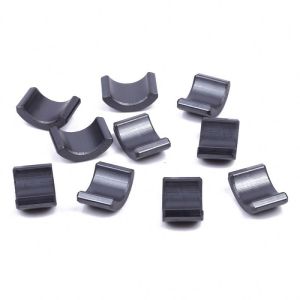

Thru Diamterical Ferrite Arc Magnet Y30BH Grade Ceramic Ferrite Magnet

Y30BH Arc Ceramic Magnet

Ferrite Arc Magnet

Ferrite Arc magnets, also known as ceramic magnets, were developed in the 1960’s as a low cost

alternative to metallic magnets.Ferrite magnets have won wide acceptance due to their excellent

corrosion resistant and good resistance to demagnetization. Despite their relatively low energy output,

ferrite magnets’ popularity is largely from its low price. It is the first choice for most automotive sensors,

MRI machines, DC motors, and magnetic separators. In fact, based on weight,it is the most widely

used permanent magnet available today.

Charcteristics
Ferrite magnets are very hard and brittle. Like all magnetic materials, ferrite magnets should not be

used as a structural element in your design. Ferrite magnets are prone to cracking if your application

requires regular impact or flexing. Because ferrite magnets offer good corrosion resistance,

they do not require an outer coating. In rare instances a thin outer coating

is applied simply to protect the material.

Fairly strong magnetic power (Power-Index(1) = 4~5)
Most common used magnet with low cost (Cost-Index(2) = 1~3)
Isotropic & Anisotropic available
Produced by powder metallurgical engineering with chemical composition of Ba/Sr O.6 Fe2O3
Very brittle & relatively hard
Good resistance to demagnetization
Good temperature stability
Oxided to saturation with excellent corrosion resistance

Service temperature greater than rare earth and lower than alnico

Finishing requires diamond cutting or grinding wheel
Energy product lower than alnico and rare earth magnets

Applications of Ceramic Magnets
• Speaker magnets
• DC brushless motors
• Magnetic Resonance Imaging (MRI)
• Magnetos used on lawn mowers, outboard motors
• DC permanent magnet motors (used in cars)
• Separators (ferrous material from non-ferrous)
• Used in magnetic assemblies designed for
lifting, holding, retrieving and separating

Regarding of magnetic properties of Ferrite Magnet, Please click here.

For your different application,different grade/series for your choice.

UNMAG are supplying Ferrite magnets applied in various industrial applications. We have advanced technology,

rich experience, and professional engineering technicians in this field.

XIAMEN UN MAGNET CO.,LTD. (UNMAG) is a high-tech enterprise in manufacturer and distribution of permanent magnet and magnetic related components.Including Neodymium magnet, Alnico magnet, SmCo magnet, Ferrite magnet and various of magnetic products.With an in-house R&D laboratory, We are able to manage and support contracted magnet projects from both the government and private sector.

All the products are approved by TS16949 & RoHS, moreover, they are enjoyed lifetime technical support.

We have 21,500 square meters, 180 staffs(Production: 108; Quality: 10; R&D: 15; Others: 47),3 sets of 600 kgs strip casting furnace,15sets sintering furnace,175 sets wire cuttiing machine, 77 sets of grinding machine and 3 electroplating production lines.They can produce 100 tons of NdFeB magnet per month and 20 tons of SmCo magnet per month.

Our comprehensive customer services have secured buyers worldwide. We have a team dedicated to answering any inquiry regarding our product features and technology. They can even provide you with technical support for magnet installation.

We provide OEM and customization service to meet your market requirements. We will continue our aggressive drive to expand the international market. Warmly welcome any overseas partners to cooperate with us now.

◼ Product Advantage

From the magnetic properties, mechanical properties, physical and chemical properties of rare earth permanent magnets, to the surface coating characteristics of magnets, and the magnetization characteristics of related components, we are able to provide customers with the best cost-effective solution.

We self-designed grinding equipement.The tolerance of final products can be within 0.03mm,The thickness of the thinnest block magnet we can produce is 0.5mm.Max length of block magnet could be 240mm,The thickness of the thickest block magnet we can produce is 60mm.

◼ Development Ability

---Engineering design

Possess CAXA, ProE, Solidwork 2D & 3D design and development capabilities.

---Electromagnetic simulation

Equipped with Ansys electromagnetic field simulation capabilities, it can quickly and economically analyze the influence of electromagnetic fields on the system.

---Fixture development

With the ability of automatic programming control, the development, manufacture and application of special equipment and tooling can greatly improve the efficiency.

---Performance formula

With magnetic material powder metallurgy molding process, the material has a unique performance formula, which 100% meets customer customization requirements.
