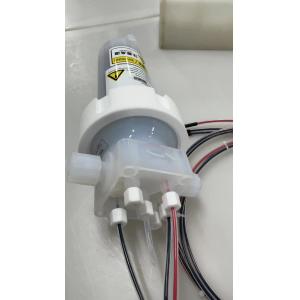

3KW Semiconductor Industry Ultrapure PFA Housing Inline Chemical Heater

Benefits

• Heavy gauge pre-formed Inconel element can stand up to high stress conditions without breaking down
• Power modulator monitors heater element temp and prevents heat buildup inside the housing
• Sealed housing prevents chemistry from attacking internal components & provides secondary containment
• Internal leak detect strip (requires external monitor) gives early detection of chemical leaks
• All wiring shielded with teflon conduit to prevent chemical attack
• Indirect heating design, no submerged heater elements
• No N2 or gas purge required

Features

• No O-Ring seals
• All wetted surfaces are high purity PFA
• PTFE housing for double containment
• Maximized watt density for performance
• Light weight construction
• Small foot print enabled by unique design
• Zero maintenance required
• PFA fluid path, wide chemistry compatibility
• High temperature capability 200°C+

Specifications

Heater	PFA In-line Chemical Heater
Wattages	1.5-12 kW
Process Chemistries	Dilute Hydrofluoric acids (DHF), Buffered Hydrofluoric acids (BHF), Buffered Oxide etch (BOE), Alkaline Chemicals (TMAH, KOH, NAOH), Fluorinated Solvents, Hydrofluoric Acid, Glycol, and much more.
Max Operating Temperature	180°C (consult factory for higher temperatures)
Max Pressure	40 psi at 180°C
Voltages	200-400VAC, single or 3 phase model dependent

Industries

• Semiconductor Fabrication
• Solar Cell Manufacturing
• Flat-Panel Display, LEDs & Electronics
• Chemicals Manufacturing
• Industrial Manufacturing

Applications

Acid Heating And Corrosive Chemical Heating

Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.

Acid Heating And Corrosive Chemical Heating(2)
TF SERIES High-purity, fluoropolymer (PTFE) bottom heater. Single or three phase. 1000-6000 watts, 120-480 volts.	HXRL SERIES Low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.	HXO SERIES Low watt density, O shaped fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-9000 watts, 120-600 volts.
HXF SERIES Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.	HX SERIES Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . Single phase. 500-9000 watts, 120-600 volts.	X SERIES COIL Excellent chemical compatibility and rugged design for your heating or cooling application. All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction. Eliminates stray currents. PFA coils are available for steam service up to 60 PSI. 10 PSI minimum steam pressure required for operation.

Yingxi Trading Company is a global, China-based company focused on designing and manufacturing world-class equipment for heating high-purity fluids and gases, including chemical Inline heaters, deionized water heater, heat exchangers,PTFE tanks &PTFE Parts,PTFE Frame Immersion Tank Heaters. We are committed to creating quality products that are safe, precise, and clean for the industries we serve.

We serve the semiconductor, solar, medical, automotive, aerospace, printed circuit board, flat panel display, jewelry/watch, electroplating, and aquaculture industries.

We serves industries that include Semiconductor, Flat Panel Display (FPD),Microelectromechanical (MEMS), Nanotechnology, Photovoltaic (PV, solar cell), Liquid Crystal Display (LCD), Biomedical and Pharmaceutical.

Yingxi’s product offering includes DI Water and Chemical Heaters, Quartz DI Water Heaters, Fluoropolymer & Quartz inline Chemical Heaters, Electric PTFE Immersion Heaters,PTFE Tanks & PTFE Parts, Immersion Coils Heat exchangers High-temperature Filter Chambers, Solvent heaters, Nitrogen heaters, and Rectifier Power Supplies.

We bring 40 years of experience to numerous industries, including semiconductor processing, clean environmental technology, energy generation, diesel emissions, medical and food service equipment.
