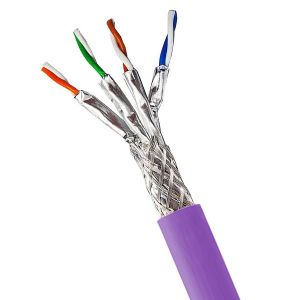

Bulk Cat7 SFTP 23AWG CPR Dca-s2,d2,a1 Purple PVC Cable for 10Gbps
Network 1000FT
Product Description:
1.The Cat7 SFTP 23AWG CPR Dca-s2,d2,a1 Purple PVC Cable for Stable
Network 600MHz is shielded with SFTP (Shielded Foiled Twisted
Pair), which offers outstanding protection against electromagnetic
interference (EMI) and radio frequency interference (RFI). This
shielding not only allows you to maintain seamless internet
connectivity even when surrounded by various electronic devices but
also ensures the utmost security and confidentiality of your data.
Additionally, it complies with the CPR (Construction Products
Regulation) standard and has the specific Dca-s2,d2,a1
characteristics, which enhance its performance and safety in
different networking environments.
2.It exhibits backward compatibility with earlier Ethernet
standards, presenting a flexible solution for all your networking
requirements. Cat7 Ethernet cables are engineered to support
cutting-edge technologies such as 10 Gigabit Ethernet, making them
highly suitable for high-performance networks. With a length of
1000Ft, it provides extensive reach for various installation
scenarios.
3.The conductor size of this cable is 23AWG, indicating a thicker
conductor in comparison to many other Ethernet cables. This thicker
conductor leads to reduced resistance and minimal signal loss,
thereby guaranteeing a faster and more dependable internet
connection. The conductor material is copper, renowned for its
exceptional conductivity and durability. Copper is favored for
Ethernet cables due to its flexibility, ease of handling, and low
resistance.
4.The jacket color of this cable is purple, which facilitates easy
identification and differentiation from other cables. The PVC
jacket of an Ethernet cable safeguards the internal components from
environmental elements like moisture, dust, and physical damage.
The purple color imparts a professional and stylish appearance,
making it an excellent choice for use in offices, data centers, and
other commercial settings.
5.In conclusion, the Cat7 SFTP 23AWG CPR Dca-s2,d2,a1 Purple PVC
Cable for Stable Network 600MHz is a top-notch Ethernet cable that
delivers high-speed data transfer rates, excellent shielding, and
remarkable durability. It is the perfect option for individuals
seeking fast and reliable internet connectivity in their homes or
offices. Place your order for this cable today and relish the
pinnacle of high-speed networking!
Features:
- Product Name: Cat7 SFTP 23AWG CPR Dca-s2,d2,a1 Purple PVC Cable for
Stable Network 600MHz
- Length: 1000Ft
- Conductor Material: Copper
- Cable Type: CAT7
- Jacket Color: Purple
- Conductor Size: 23AWG
The Cat7 SFTP 23AWG CPR Dca-s2,d2,a1 Purple PVC Cable for Stable
Network 600MHz is a high-speed Ethernet cable. It's great for
quickly and efficiently transferring large files, suitable for
connecting various network devices. With a 1000Ft length, it can
reach far. The 23AWG copper conductor ensures durability and aids
signal transmission. Complying with CPR and having Dca-s2,d2,a1
features, it meets high-speed network needs. The SFTP shielding
resists interference, and the purple PVC jacket protects and is
easy to identify. Ideal for home and office use where stable,
high-speed connections matter.
Technical Parameters:
| Product Attribute | Description |
|---|
| Cable Type | Cat7 Ethernet Cable |
| Shielding Type | SFTP Cat7 Cable |
| Conductor Material | Copper |
| Conductor Size | 23AWG |
| Jacket Material | PVC |
| Jacket Color | Purple |
| Frequency | 600MHz |
| Length | 1000Ft |
Product Description: Cat7 SFTP 23AWG CPR Dca-s2,d2,a1 Purple PVC Cable for Stable
Network 600MHz |
| Rev.: A | ECN Description: |
| Construction Item Description | Electrical Property |
Conductor |
Material | Bare Solid Copper(elongation: 19-24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| OD | 23 AWG | Resistance unbalance within a pair | ≤ 2% |
Insulation | Material | PE Skin-Foam-Skin | Insulation Resistance at 20°C after 2min of electrification under a
DC voltage between 100 & 500V |
>1500 MΩ / 100m |
| OD | 1.33 ±0.01 mm | Mutual capacitance | 5600 pF / 100m MAX |
| Average THK | 0.37mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m |
Color | 1p: white + 2 blue stripes & blue | Characteristic impedance at 100MHz | 100 ± 15 Ω |
2p: white + 2 orange stripes & orange | Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min |
No breakdown |
| 3p: white + 2 green stripes & green | Mechanical Property |
| 4p: white + 2 brown stripes & brown |
insulation | elongation before aging | ≥ 300% |
Pair Twist |
Lay & Direction | 1p: S=19.0 mm (28%) | tensile strength before aging | ≥12 MPa |
| 2p: S=23.5 mm (31%) | elongation after aging | ≥ 150 % |
| 3p: S=21.5 mm (33%) | tensile strength after aging | ≥10.5 MPa |
| 4p: S=25.0 mm (36%) |
jacket | elongation before aging | ≥ 125 % |
| OD | / | tensile strength before aging | ≥ 10 MPa |
Inner Assemble | Lay | S=90 ± 5 mm | elongation after aging | ≥ 100 % |
| Direction | according to the drawing | tensile strength after aging | ≥ 8 MPa |
| OD | / | Packing |
Filler | Ripcord | 3*250D | Drum | NA |
| Drain Wire | / | | |
Pair Shield | Shield | Pair Shield |
|
| Construction | / |
| Material | Polyester/Aluminium (PET/ALU) |
| Coverage | ≥ 115% |
Braid | Material | ɸ 0.12mm Aluminum-magnesium braided |
| Coverage | ≥ 40% |
Jacket | Material | PVC, 60P, -20~75℃ |
| Hardness | 81± 3 |
| OD | 8.1 ± 0.2 |
| Average THK | 0.55 ~ 0.65 |
Color | Purple |
| Marking Color | black |
| Marking | according to the customer's requirements |
| Electrical Properties |
| Conductor Resistance at 20°C | NF EN 50289-1-2 / IEC 60189-1 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | NF EN 50289-1-2/ IEC 60708 | ≤ 2% |
Dielectric Strength Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage
(cd/screen): 1.00KV DC or 0.7 KV AC for 1 min |
NF EN 50289-1-3 / IEC 61196-1-105 |
No breakdown |
| Insulation Resistance at 20°C after 2min of electrification under a
DC voltage between 100 & 500V |
NF EN 50289-1-4 / IEC 60885-1 | >1500 MΩ / 100m |
| Mutual capacitance | NF EN 50289-1-5 /IEC 60189-1 | 5600pF / 100m MAX |
| Capacitance unbalance pair to ground at 800Hz or 1 kHz | NF EN 50289-1-5 / IEC 60189-1 | ≤ 160 pF / 100m |
| Characteristic impedance at 100MHz | NF EN 50289-1-11/ IEC 61156-1 | 100 ± 15 Ω |
| Spark Test | UL444 | 2000 ± 250VOC |
| Transmission Properties |
| CAT7 ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013 |
No. |
Frequency |
Attenuation (Max) | Propagation Delay (Max) | Propagation Delay Skew (Max) |
Return Loss (Min) |
NEXT (Min) |
PS NEXT (Min) |
EL-FEXT (Min) |
PS EL-FEXT (Min) |
| MHz | dB/100m | ns/100m | ns/100m | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) |
| 1 | 4 | 3.74 | 552 | 25 | 23.00 | 78.0 | 75.30 | 78.0 | 75.00 |
| 2 | 8 | 5.24 | 547 | 25 | 24.50 | 78.0 | 75.0 | 75.90 | 72.90 |
| 3 | 10 | 5.86 | 545 | 25 | 25.00 | 78.0 | 75.0 | 74.00 | 71.00 |
| 4 | 16 | 7.41 | 543 | 25 | 25.00 | 78.0 | 75.0 | 69.90 | 66.90 |
| 5 | 20 | 8.29 | 542 | 25 | 25.00 | 78.0 | 75.0 | 68.00 | 65.00 |
| 6 | 25 | 9.29 | 541 | 25 | 24.30 | 78.0 | 75.0 | 66.00 | 63.00 |
| 7 | 31.25 | 10.41 | 540 | 25 | 23.60 | 78.0 | 75.0 | 64.10 | 61.10 |
| 8 | 62.5 | 14.88 | 539 | 25 | 21.50 | 75.50 | 72.40 | 55.10 | 55.10 |
| 9 | 100 | 19.20 | 538 | 25 | 20.10 | 72.40 | 69.40 | 54.00 | 51.00 |
| 10 | 150 | 23.56 | 537 | 25 | 18.90 | 69.80 | 66.80 | 50.20 | 47.20 |
| 11 | 200 | 27.74 | 536 | 25 | 18.00 | 67.80 | 64.90 | 48.00 | 45.00 |
| 12 | 250 | 30.97 | 536 | 25 | 17.30 | 66.40 | 63.40 | 46.00 | 43.00 |
| 13 | 300 | 34.19 | 536 | 25 | 17.30 | 65.20 | 62.20 | 44.50 | 41.50 |
| 14 | 600 | 50.10 | 536 | 25 | 17.30 | 60.70 | 57.70 | 38.40 | 35.40 |
| 15 | 800 | 58.92 | 535 | 25 | 17.30 | 58.90 | 55.90 | 35.90 | 32.90 |
| 16 | 1000 | 66.93 | 535 | 25 | 17.10 | 57.40 | 54.40 | 34.00 | 31.00 |
Applications:
One of the main applications of this Cat7 Lan Cable, which is a
Cat7 SFTP 23AWG 600MHz CPR Dca-s2,d2,a1 Purple PVC Cable for Stable
Network, lies in Ethernet networks. Thanks to its 23AWG conductor
size, this cable can achieve high-speed data transfer rates of up
to 10Gbps, making it highly suitable for streaming video, gaming,
and other bandwidth-intensive tasks. The SFTP shielding, which is a
key feature, effectively reduces interference and crosstalk,
thereby ensuring a more stable and reliable network connection.
This is especially crucial in environments with multiple electronic
devices or strong electromagnetic fields.
Whether you are establishing a home network, enhancing your office
infrastructure, or interconnecting multiple devices in a data
center, the ITI - LINK Cat7 SFTP 23AWG 600MHz CPR Dca-s2,d2,a1
Purple PVC Cable for Stable Network is a versatile and dependable
option that can fulfill your requirements. This cable demonstrates
compatibility with a broad spectrum of networking equipment and can
be deployed in diverse scenarios. For instance:
- In residential and commercial buildings, it can support seamless connectivity for various smart home
devices and office workstations, ensuring smooth operation of daily
applications such as video conferencing and large file transfers.
- In schools and universities, it can handle the heavy network traffic generated by a large
number of students and faculty members accessing online resources,
educational software, and conducting research activities.
- In hospitals and healthcare facilities, the cable's reliability and security features, enhanced by its CPR
compliance and Dca-s2,d2,a1 characteristics, are vital. It can
support the transmission of critical patient data, imaging files,
and real-time monitoring information without interruption or data
loss.
- In data centers and server rooms, where high-density cable installations are common, the 1000Ft
length of the cable provides flexibility in layout and connection.
The cable's ability to maintain stable performance under high data
load and in the presence of other cables' interference is essential
for the continuous operation of servers and network infrastructure.
- In industrial and manufacturing environments, the cable's durability and resistance to environmental factors,
combined with its interference shielding capabilities, enable it to
function reliably in harsh conditions. It can support the
communication between industrial control systems, sensors, and
automation equipment, ensuring the smooth running of production
processes.
In any of these scenarios, the ITI - LINK Cat7 SFTP 23AWG 600MHz
CPR Dca-s2,d2,a1 Purple PVC Cable for Stable Network can establish
a fast, stable, and secure network connection that can accommodate
even the most demanding applications and workloads.
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is ITI-LINK.
Q: What is the model number of this product?
A: The model number of this product is ITI-CT7SF-008.
Q: Where is this product manufactured?
A: This product is manufactured in SHENZHEN.
Q: What is the maximum data transfer rate of this cable?
A: This cable is a CAT7 cable and has a maximum data transfer rate
of 10Gbps.
Q: Is this cable suitable for outdoor use?
A: No, this cable is not suitable for outdoor use.
Q: How are Cat7 shielded network cables grounded?
A: Generally, single ended grounding is adopted: one end of the
shielded wire is grounded and the other end is suspended.
