Product Description:

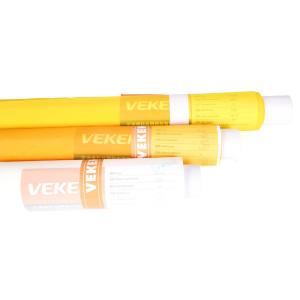

VEKEN BRAND HIGH MODULUS SCREEN MESH FOR PCB AND PANEL PRINTING
The Chinese famous product origin from a Sino-Japan joint venture
company;
Welcomed in various fields, it keeps gaining great feedbacks from
Customers.
Mesh products is widely used in Korean & Vietnamese PCB stencil
manufacturers
Features & your benefit :
- High modulus [eg. 380-30 max 30N]
- Less tension loss [10%in 24 hr, 12% in7 days],Less modulus changes
- High open ratio makes excel resolution.
- Enhanced dimensional accuracy
- Available plasma treatment let emulsion adhesively bonded on mesh
- Complete products line, various counts /width, multi color
available
- Durable and 15% Longer serivce time than other mesh
- *PLASMA* Treatment to enhance adhesion of emulsion
- Best quality aftersales service , free to exchange if you found any
defects while in using .
Technical Parameters:
| Attribute | Value |
|---|
| Product Name | V-PL series Plasma treated 150-30 Screen Printing Mesh |
| Mesh counts | 150T/380 mesh |
| Series | VEKEN V-PL SERIES |
| Modulus | max 30N |
| tencile loss | 10%in 24 hr, 12% in7 days |
| Color | white / amber / lemon yellow |
| tencile Strength | Strong |
| application | Pcb printing stencil , cover panel printing stencil |
| Width | 127cm - 165cm ; 45inch - 65 inch as requsted |
| Ink Volumn | tested well |
| opening | 31μ |
| Thickness | 48μ |
| Graphic solution | tested well |
| diameter | 30 |
Applications:
TOP VEKEN V-PL SERIES MESH is super high quality and ideal screen
printing mesh for high end electronic printing like pcb / touch
screen / appliance panel cover factory etc
It has excellent modulus and less tensile loss after stretching.
fitted to various stencil / screen mask material , V mesh is highly
popular among in Korea, Vietnam , Japanese Customers.
Soonest stretching time to get max tension beucause V series mesh
has very low elongation and almost few elastic, which improve your
efficiency of stencil output
Your perfect solution for printing needs.
Test Report of V-PL mesh Plasma Treatment:
Under the conditions of a temperature of 23°C and a humidity of
40%, after using a sticky roller to roll back and forth 10 times on
the surface of the printing plate, measure the charge amount within
2 minutes and the half - life.
Details of the test method: Conduct according to the company's test
method.
Results
① Adhesion (bonding property): For "V-PL Series Mesh" that has
undergone plasma processing, it has been confirmed that its
adhesion exceeds that of PET1500.
② Anti-static effect: For “V-PL Series Mesh" processed by plasma,
no improvement in the anti-static effect has been confirmed. It
shows that its anti-static effect is worse than that of SMP300-34
and PET1500.
Conclusion
It can be determined that the plasma-processed V-PL Series Mesh,
even without cleaning, also performs excellently in terms of the
adhesion of the photosensitive emulsion.
However, due to its lack of an anti-static effect, it does not have
the function of preventing dust adhesion during the drying process.
