    Single Phase Smart Prepaid Energy Meter With STS Payment Algorithm DLMS Certificated

    Ask Lasest Price
    Brand Name : Calin
    Model Number : CA168
    Certification : IEC/DLMS/COSEM/CE
    Price : Negotiation
    Payment Terms : western Union,Paypal, T/T, L/C
    Supply Ability : 70,000pcs per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

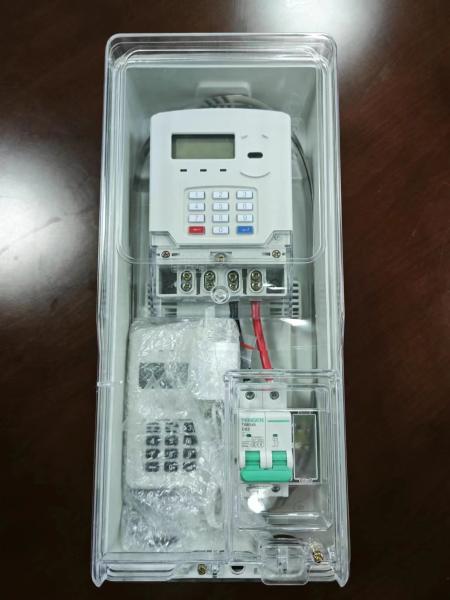

    Single Phase Smart Prepaid Energy Meter With STS Payment Algorithm DLMS Certificated

    Single Phase Smart Prepaid Energy Meter with STS payment algorithm, DLMS certificated


    The Compact STS-Compliant Prepaid Power Meter is designed for efficient energy monitoring in homes and small businesses. This two-wire system meter ensures simple installation and adheres to the Standard Transfer Specification for secure, tamper-evident energy measurement.
    Protected by a robust case, it's suitable for outdoor use and resists harsh environments. The prepaid system promotes responsible energy use, with token-based recharging and integration with vending systems for smooth transactions. Its long-lasting battery suits remote areas.


    Features:
    Measures dual power sources.
    Communicates via RF-Lora, RS485, and infrared.
    Offers prepaid and postpaid options.
    Auto-shutdown on overload or credit exhaust.
    Customizable power limits and low credit alerts.
    Tamper detection with automated reports.


    Benefits:
    Seamless UIU integration for modular use.
    TOU, multi-tariff, and holiday schedule support.
    Accurate performance.
    Recharge with a 20-digit token.
    Permanent data storage.


    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields


    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

    Protective Class II
