Intelligent Electronic Rearview Mirror Solution Based on Nxpp Imx6 Rearview Mirror

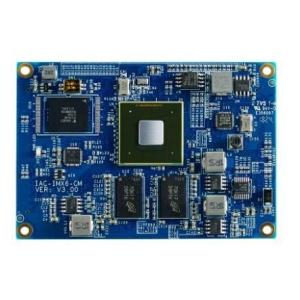

Intelligent IAC-IMX6-CM core board, high quality industrial control, automotive, consumer terminal embedded board
For PCB model customization, the user must upload a compressed package of PCB file (Gerber file is the best type) at the end of the customization For new model customization, the user must upload a compressed package of PCB file (Gerber file is the best type) at the end of the customization page, if there are other board instructions (including but not limited to: PDF, WORD, EXCEL, TXT, JPG, BMP), please also enter the compressed package, so that we can match your board 100%.
Intelligent electronic rearview mirror solution based on NX P iMX6
Based on the electronic rearview mirror of the i.MX6 core board, the external long focus and short focus dual cameras will show the side and side rear blind areas through high-definition images, and the blind areas can not be hidden; At the same time, the 12.3-inch screen, 1920*720 resolution, the surface of the high-tech anti-glare treatment, to prevent sunlight from forming a reflection affecting the line of sight, to ensure clear picture quality. Based on the electronic rearview mirror of the i.MX6 core board, the external long focus and short focus dual cameras will show the side and side rear blind areas through high-definition images, and the blind areas can not be hidden; At the same time, the 12.3-inch screen, 1920*720 resolution, the surface of the high-tech anti-glare treatment, to prevent sunlight from forming a reflection affecting the line of sight, to ensure clear picture quality.
ARM® Cortex™-A9 core, up to 1.0GHZ, compatible with single-core, dual-core, quad-core;
With 2D/3D/VG accelerator, 1080P h.264 video hardware codec, support double 720P video coding;
NEON SIMD media Accelerator with 1MBL2 cache, 32KB instruction and data cache;
1x 20-bit parallel, MIPI-CSI2 (4 channels), supporting three simultaneous input camera interfaces;
Highly reliable boot, encryption engine, random number generator and tamper detection;
Integrated 1 industrial Gigabit Ethernet MAC(10/100/1000MHz);
Integrate 2 CAN channels, each up to 1Mbps, support CAN2.0 protocol;
Expansion of 3 serial ports, HDMI interface, LVDS display interface;
Supports Linux and Android embedded operating systems.
The system consists of a 12.3-inch screen and two 1080P cameras
i.MX6D/Q processor, running Android operating system;
The display screen can be cropped according to different models;
Fusion side blind radar with moving object recognition and detection (advanced version available)
Store 7 days of driving video and review at any time
Meet the relevant requirements of indirect vision devices for motor vehicles in GB 15084-2019;
The device can work in the temperature range of -40ºC~+85ºC
The system is stable, resistant to high and low temperatures, rapid response, facing the front assembly, 2S shop modification, after the assembly market.
