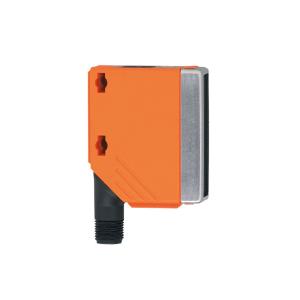

    Diffuse reflection sensors with background suppression O5H500 O5H-FPKG

    Ask Lasest Price
    Brand Name : IFM
    Model Number : OGH500
    Certification : 3C
    Price : $164/piece
    Payment Terms : T/T
    Supply Ability : 1piece in stock
    Delivery Time : 3 day
    • Product Details
    • Company Profile

    Diffuse reflection sensors with background suppression O5H500 O5H-FPKG

    Photoelectric sensors
    O5H5001: Programming buttons
    2: When a M5 mounting screw is used, the max. tightening torque is 2 Nm.
    Receiver in upper lens, transmitter in lower lens
    O5H-FPKG/US
    Diffuse reflection sensor
    Rectangular plastic
    Plug and socket
    Background suppression
    Teach function
    Electronic lock
    Range 50...1800mm
    (Range referred to white paper 200 x
    200 mm, 90 % remission)
    adjustable
    Outputlight-on / dark-on programmable
    Range
    Object white (90 % remission)
    Object grey (18 % remission)
    Object black (6 % remission)
    [mm]
    50...1800
    50...900
    50...600
    Light spot diameter[mm]50 ( Range 1000 mm )
    Operating voltage[V]10...36 DC
    Current rating [mA]200
    Short-circuit protectionpulsed
    Reverse polarity protectionyes
    Overload protectionyes
    Voltage drop[V]< 2.5
    Current consumption[mA]25
    Switching frequency[Hz]1000
    Type of lightRed light 624 nm
    Operating temperature [°C]-25...60
    ProtectionIP 67, II
    EMCEN 60947-5-2
    Housing materialhousing: PA; bezel: high-grade stainless steel; operator interface: TPU
    Material lensPMMA
    Function display
    Switching status
    LEDyellow
    ConnectionM12 connector
    RemarkscULus - Class 2 source required
    ifm electronic gmbh • Teichstraße 4 • 45127 Essen — We reserve the right to make technical alterations without prior notice. — GB — O5H500 — 13.04.2007
    O5H500
    Wiring
    Accuracy graph
    a: sensor
    b: object
    c: background
    x: distance sensor / object
    y: min. distance object / background
    Values in [mm]
    1 = object black (6 % remission),background white (90 % remission)
    2 = object grey (18 % remission),background white (90 % remission)
    3 = object white (90 % remission),background white (90 % remission)
