High-Performance OHS-BC-1-19/18-P2-1-B Military Circular Connectors
For DC And AC Circuits Description
Connectors of OHS-BC-1(2) type (plugs and receptacles) are designed
for use in DC and AC circuits (up to 3 MHz) with voltage up to 250
V
ОНЦ-БС 1(2) electrical connectors are used in DC and AC circuits.
Plugs and sockets are bayonet connections.
High-Performance OHS-BC-1-19/18-P2-1-B Military Circular Connectors
For DC And AC Circuits main features:
Compact Size: Ideal for applications where space is limited.
High Performance: Capable of handling high data rates and power
levels despite its small size, making it suitable for a wide range
of applications.
Durable Construction: Constructed of high-quality materials to
ensure long service life, even in harsh environments.
Easy Installation: Enables quick and easy installation and
disassembly, saving time and effort during assembly and
maintenance.
High-Performance OHS-BC-1-19/18-P2-1-B Military Circular Connectors
For DC And AC Circuits Parameter
Category | Military Circular Connectors |
Part number | OHS-BC-1-7/12-B1-1-B |
Connector Type | Receptacle |
Orientation | Hermetic Square flange |
Contact Type | Male Pin |
Number of Positions | 7 |
Fastening Type | Threaded |
Mounting Type | Panel Mount |
Contact Termination | Crimp |
Protection Rating | IP67 |
High-Performance OHS-BC-1-19/18-P2-1-B Military Circular Connectors
For DC And AC Circuits tecnical performance
Contact resistance | ≤5mΩ |
Insulation resistance | ≥1000MΩ(in normal situation) |
Ambient temperature | ’-60℃~85℃ |
Vibration | 1-5000HZ 20g |
Shocking | once 1000g, repeatedly 100g |
Contact diameter | ø1.0mm |
Mechanical life | 250times |
Working time | 5000hours |

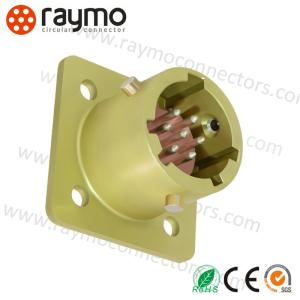

High-Performance OHS-BC-1-19/18-P2-1-B Military Circular Connectors
For DC And AC Circuits pictures
High-Performance OHS-BC-1-19/18-P2-1-B Military Circular Connectors
For DC And AC Circuits Application
This vast portfolio enables you to select the ideal connector
configuration to suit almost any specific requirement in most
markets inclyding medical devices, test and measurement
instruments, machinery, audio video broadcast, telecommunications
and military
About SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED
As a professional in design and manufacture all kinds of connectors
and special cables, have accumulated rich experience in development
and prction for kinds of cables and its related connector
adapter.With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony
Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable...
We supply different OEM/ODM services serve as different application
and requirement.
Our prcts are widely used in kinds of harsh environment and
applications, like industrial control devices, medical equipment,
measuring and inspecting equipment, audio & visual equipment and
military, etc.
Our Service
High Quality: CNC machine, professional engineer, skilful worker,
responsible QC ensure our high quality prcts;
OEM & ODM: OEM & ODM services are welcome;
Sample policy: Free sample & sample order are accepted;
Fast delivery: 3~5 working days after receiving payment for normal
connectors;
Fast Respond: within 24 hours for your inquiry and any other
questions;
After-sale Service: Follow up your shipment. Provide professional
solutions for your questions.
